Tektronix 2430A
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Number of Channels | 2 |
| Sample Rate | 100 MS/s (single channel), 50 MS/s (both channels) |
| Record Length | 4,096 points per channel |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 5 s/div |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ ± 1% in parallel with 20 pF ± 3 pF |
| Display Type | Built-in CRT display |
| Power Requirements | 90–250 VAC, 45–440 Hz, 90 W maximum |
| Model | 2430A |
|---|

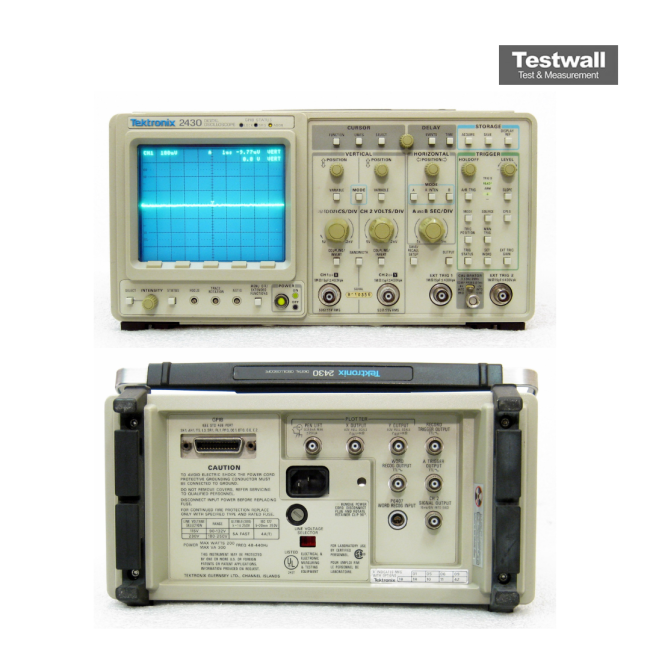

The Tektronix 2430A 2 Channel 150MHz Digitising Scope delivers high-speed, high-accuracy waveform acquisition with a bandwidth of 150MHz across two independent channels. It offers precise digitising capabilities, advanced triggering options, and a fast sample rate for capturing complex signals with clarity and detail.
Ideal for engineers and technicians, it supports detailed waveform analysis, fault detection, and signal characterization in demanding test environments.
Testwall can supply the used Tektronix 2430A 2 Channel 150MHz Digitising Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2430A 2 Channel 150MHz Digitising Scope.
