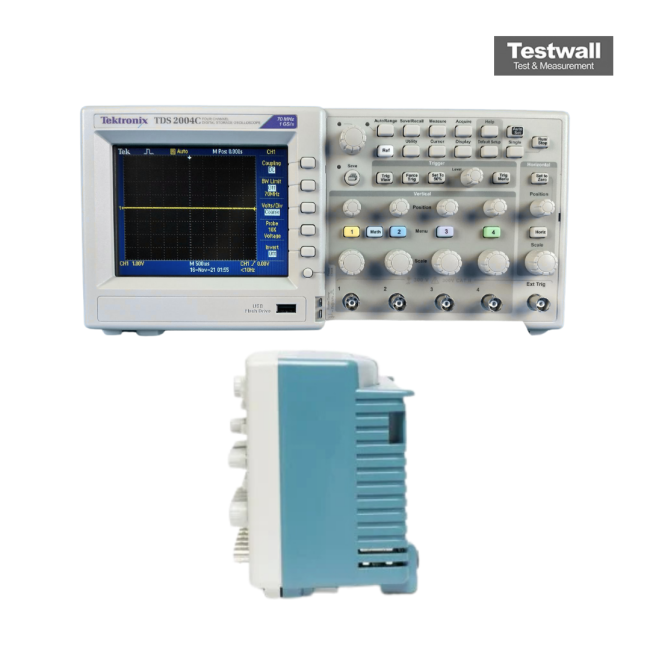

Tektronix TDS2004C
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 70 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 5.7-inch color TFT LCD |
| Storage | USB Flash Drive compatible for waveform and screen image storage |
| Input Impedance | 1 MΩ in parallel with 20 pF |
Tektronix TDS2004C Options:
- TDS2004C - L0 - English (front-panel label on instrument)
- TDS2004C - L1 - French (front-panel overlay)
- TDS2004C - L2 - Italian (front-panel overlay)
- TDS2004C - L3 - German (front-panel overlay)
- TDS2004C - L4 - Spanish (front-panel overlay)
- TDS2004C - L5 - Japanese (front-panel overlay)
- TDS2004C - L6 - Portuguese (front-panel overlay)
- TDS2004C - L7 - Simplified Chinese (front-panel overlay)
- TDS2004C - L8 - Traditional Chinese (front-panel overlay)
- TDS2004C - L9 - Korean (front-panel overlay)
- TDS2004C - L10 - Russian (front-panel overlay)
- TDS2004C - A0 - North America power plug (115 V, 60 Hz)
- TDS2004C - A1 - Universal Euro power plug (220 V, 50 Hz)
- TDS2004C - A2 - United Kingdom power plug (240 V, 50 Hz)
- TDS2004C - A3 - Australia power plug (240 V, 50 Hz)
- TDS2004C - A4 - North America power plug (240 V, 50 Hz)
- TDS2004C - A5 - Switzerland power plug (220 V, 50 Hz)
- TDS2004C - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- TDS2004C - A10 - China power plug (50 Hz)
- TDS2004C - A11 - India power plug (50 Hz)
- TDS2004C - A12 - Brazil power plug (60 Hz)
- TDS2004C - A99 - No power cord
- TDS2004C - D1 - Calibration Data Report
| Model | TDS2004C |
|---|
The Tektronix TDS2004C is a high-precision 4-channel digital storage oscilloscope with 70 MHz bandwidth and up to 2 GS/s sampling. It features USB connectivity, 16 automated measurements, advanced triggers, data logging, and FFT analysis. With real-time 10X oversampling and 2.5k memory depth per channel, it captures signals accurately even across all channels simultaneously.
Designed for electronics diagnostics, embedded systems, and R&D, the TDS2004C includes PC connectivity, probe check wizard, waveform limit testing, and multilingual interface in a lightweight, compact format.
Testwall can supply the used Tektronix TDS2004C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2004C.
