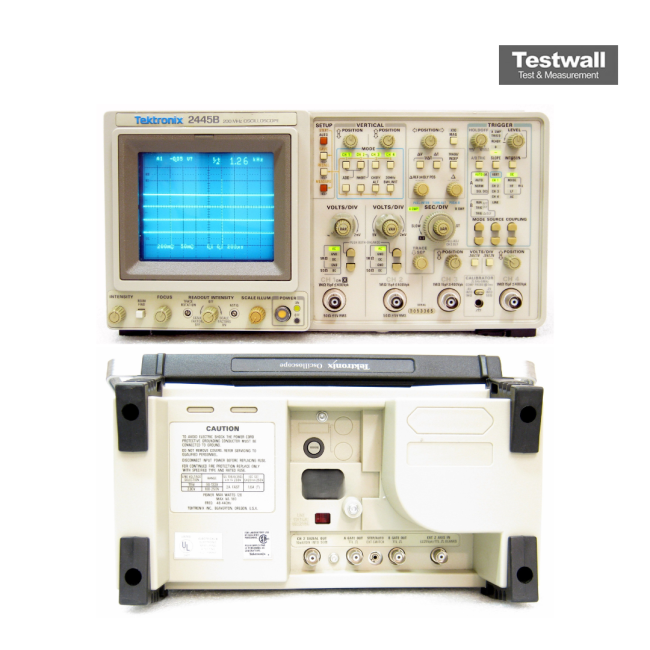

Tektronix 2445B
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Number of Channels | 4 |
| Sample Rate | 250 MS/s |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 0.5 ns/div to 5 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display Type | Analog CRT |
| Trigger Modes | Auto, Normal, Single Sweep, TV |
| Power Requirements | 90–250 VAC, 45–440 Hz |
| Operating Temperature | 0°C to +50°C |
Tektronix 2445B 4 Channel 150MHz Analogue Scope Options:
- 2445B - 01 - Digital Multimeter
- 2445B - 05 - Waveform Measurement System
- 2445B - 10 - Ieee-488 Gpib
| Model | 2445B |
|---|
The Tektronix 2445B features a 150MHz analog bandwidth with four independent input channels, auto setup functionality, selectable input impedance, and the ability to save and recall measurement setups. Its precise triggering and measurement accuracy make it ideal for both design and troubleshooting applications.
This oscilloscope is suited for signal analysis, waveform observation, and testing across a wide range of electronics and communications environments.
Testwall can supply the used Tektronix 2445B 4 Channel 150MHz Analogue Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2445B 4 Channel 150MHz Analogue Scope.
