Tektronix MSO46 4-BW-1000 4 Series MSO
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points standard |
| Digital Channels | 32 digital channels (via TLP058 FlexChannel probes) |
| Vertical Resolution | 12-bit ADC |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Connectivity | USB 2.0, USB 3.0, LAN (LXI), DisplayPort |
| Integrated Instruments | Spectrum Analyzer, Arbitrary Function Generator (optional), Digital Voltmeter, Trigger Frequency Counter |
Tektronix MSO46 4-BW-1000 4 Series MSO Options:
- MSO46 - 4-BW-200 - 200 MHz Bandwidth
- MSO46 - 4-BW-350 - 350 MHz Bandwidth
- MSO46 - 4-BW-500 - 500 MHz Bandwidth
- MSO46 - 4-BW-1000 - 1 GHz Bandwidth
- MSO46 - 4-BW-1500 - 1.5 GHz Bandwidth
- MSO46 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO46 - 4-AFG - Add Arbitrary / Function Generator
- MSO46 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO46 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO46 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO46 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO46 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO46 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO46 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO46 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO46 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO46 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO46 - 4-SRUSB2 - USB 2.0 serial bus triggering and analysis (LS, FS, HS)
- MSO46 - 4-PWR-BAS - Power Measurements and Analysis
- MSO46 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO46 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
| Model | MSO46 |
|---|

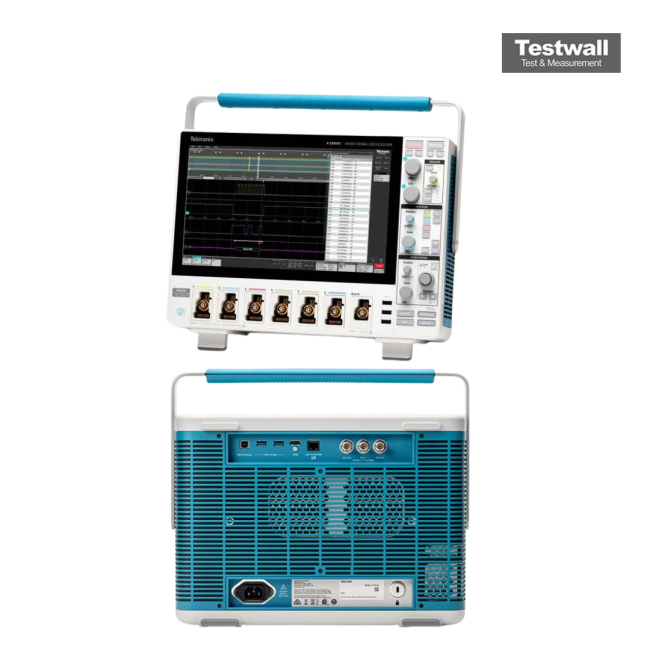

The Tektronix MSO46B/4-BW-1000 is a high-performance 6-channel mixed signal oscilloscope with 1 GHz bandwidth, 6.25 GS/s sampling rate, and a 13.3-inch full HD capacitive touchscreen. It includes FlexChannel® inputs and a record length of up to 62.5 Mpoints, offering >500,000 waveforms/s capture rate and up to 16-bit resolution in High-Res mode.
This model supports 48 digital channels (TLP058 probe required), features advanced triggering, stacked display mode, quick access result bar, and extensive connectivity with USB2, USB3, Ethernet ports, and HDMI. Ideal for high-speed and complex signal analysis.
Testwall can supply the used Tektronix MSO46B/4-BW-1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO46B/4-BW-1000.
