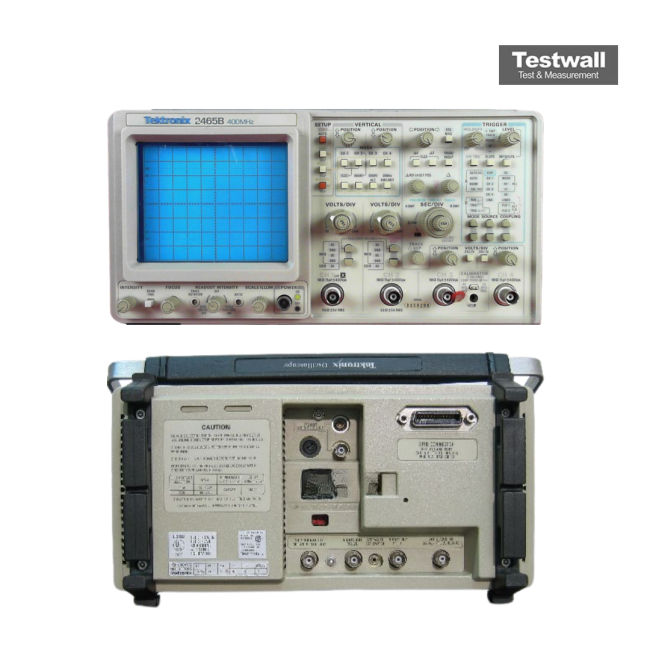

Tektronix 2465B
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 1 GSa/s (single-shot) |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Timebase Range | 0.5 ns/div to 5 s/div |
| Rise Time | 875 ps |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Maximum Input Voltage | 400 V (DC + peak AC) |
| Display Type | Analog CRT, 8 x 10 cm |
| Power Requirements | 90–250 VAC, 45–66 Hz, 200 W maximum |
Tektronix 2465B 4 Channel 400MHz Analogue Scope Options:
- 2465B - 01 - Digital Multimeter
- 2465B - 05 - Waveform Measurement System
- 2465B - 06 - Counter/Timer/Trigger
- 2465B - 09 - Ctt With Word Recogniser
- 2465B - 10 - Ieee-488 Gpib
- 2465B - 22 - Add Two Passive Probes
- 2465B - IE - External Clock
| Model | 2465B |
|---|
The Tektronix 2465B offers 400MHz analog bandwidth with four independent input channels, 1% horizontal system accuracy, and 2% vertical deflection accuracy for exceptional precision. It features on-screen vertical and horizontal cursors, auto setup functions, selectable input impedance, and the ability to save and recall setups. The front panel Channel 1 - Channel 2 delay-matching adjustment compensates for probe and vertical-channel delay differences, minimizing errors.
Ideal for advanced measurements, the 2465B delivers immediate and accurate voltage, time, frequency, ratio, and phase readings. Cursor-based operation increases operator productivity while reducing interpretation errors.
Testwall can supply the used Tektronix 2465B 4 Channel 400MHz Analogue Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2465B 4 Channel 400MHz Analogue Scope.
