Tektronix 370A
| Attribute | Value |
|---|---|
| Display Type | High-resolution CRT display with variable persistence and storage modes |
| Maximum Collector Voltage | 3000 V peak |
| Maximum Collector Current | 3 A peak |
| Step Generator Output | Voltage or current steps, programmable polarity and amplitude |
| Number of Steps | 1 to 10 steps per family of curves |
| Curve Tracer Type | Programmable semiconductor curve tracer |
| Power Supply | 100/120/220/240 VAC, 48–66 Hz |
| Power Consumption | Approximately 400 W maximum |
| Operating Temperature | 0°C to +50°C |
| Dimensions (H x W x D) | Approximately 17.5 in x 19 in x 24 in (444 mm x 483 mm x 610 mm) |
Tektronix 370A Options:
- 370A - 1R - Rackmount kit
- 370A - 95 - Provide test report
- 370A - 96 - Provide Inspection Passed certificate
- 370A - C5 - Five-year calibration Service Assurance Plan
- 370A - R2 - Two additional years repair Service Assurance Plan
- 370A - A1 - Universal Euro 220 V, 50 Hz
- 370A - A2 - UK 240 V, 50 Hz
- 370A - A3 - Australian 240 V, 50 Hz
- 370A - A4 - North American 240 V, 60 Hz
- 370A - A5 - Switzerland 220 V, 50 Hz
| Model | 370A |
|---|

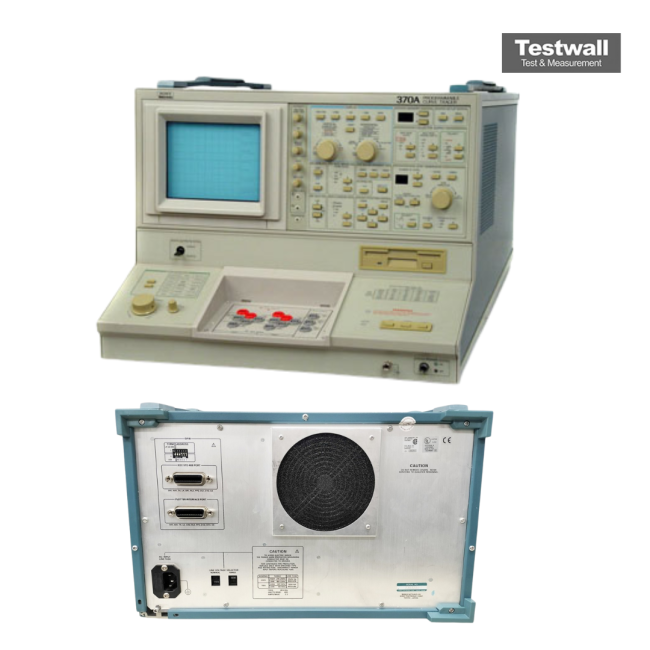

The Tektronix 370A Curve Tracer provides advanced DC parametric characterization of semiconductor devices including MOSFETs, diodes, thyristors, and more, with sourcing up to 2000V or 10A and 1nA resolution. Its high-resolution measurements and programmable interface support deep semiconductor analysis.
With features like waveform averaging, Kelvin sense measurements, and DOS-compatible disk storage, the 370A is ideal for R&D, manufacturing, and quality control tasks involving complex semiconductor evaluation and component matching.
Testwall can supply the used Tektronix 370A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 370A.
