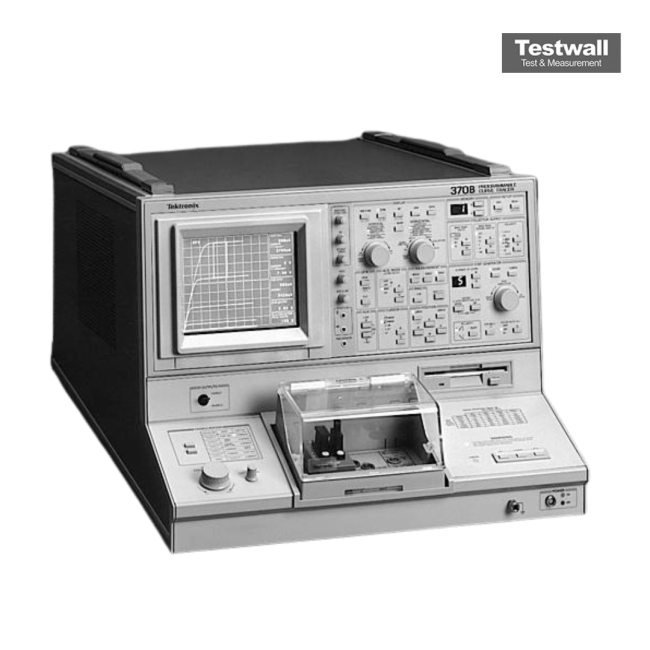

Tektronix 370B
| Attribute | Value |
|---|---|
| Display Type | High-resolution CRT display with variable persistence and store modes |
| Maximum Collector Voltage | 3000 V |
| Maximum Collector Current | 3 A peak |
| Voltage per Division Range | 1 mV/div to 500 V/div |
| Current per Step Range | 10 µA/step to 200 mA/step |
| Step Generator Output | Voltage or current steps, up to 10 steps per sweep |
| Curve Tracer Function | Characterizes bipolar transistors, FETs, MOSFETs, diodes, SCRs, and other semiconductor devices |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to +50°C |
| Certifications | UL listed, CSA certified, CE marked |
Tektronix 370B Options:
- 370B - Opt. A1 - Euro Plug, 220V, 50 Hz
- 370B - Opt. A2 - UK Plug, 240V, 50 Hz
- 370B - Opt. A3 - Australian Plug, 240V, 50 Hz
- 370B - Opt. A5 - Swiss Plug, 220V, 50 Hz
- 370B - Opt. AC - China Plug, 50 Hz
- 370B - Opt. A9 - No power cord, set to 220/240 V
- 370B - Opt. C3 - Calibration Service 3 Years
- 370B - Opt. C5 - Calibration Service 5 Years
- 370B - Opt. D1 - Calibration Data Report
- 370B - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- 370B - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- 370B - Opt. R3 - Repair Service 3 Years
- 370B - Opt. R5 - Repair Service 5 Years
- 370B - Opt. 1R - Rackmount Kit (Order 016-0930-00)
| Model | 370B |
|---|
The Tektronix 370B Curve Tracer delivers high-resolution DC parametric measurements with up to 20 A/2,000 V sourcing and sensitivity down to 1 pA or 50 µV. Its versatile setup allows analysis of transistors, diodes, MOSFETs, and more, with programmable settings, waveform averaging, and Kelvin sense capabilities.
Ideal for R&D and manufacturing, the 370B enables SPICE parameter extraction, failure analysis, and performance verification through accurate DC characteristics testing.
Testwall can supply the used Tektronix 370B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 370B.
