Tektronix

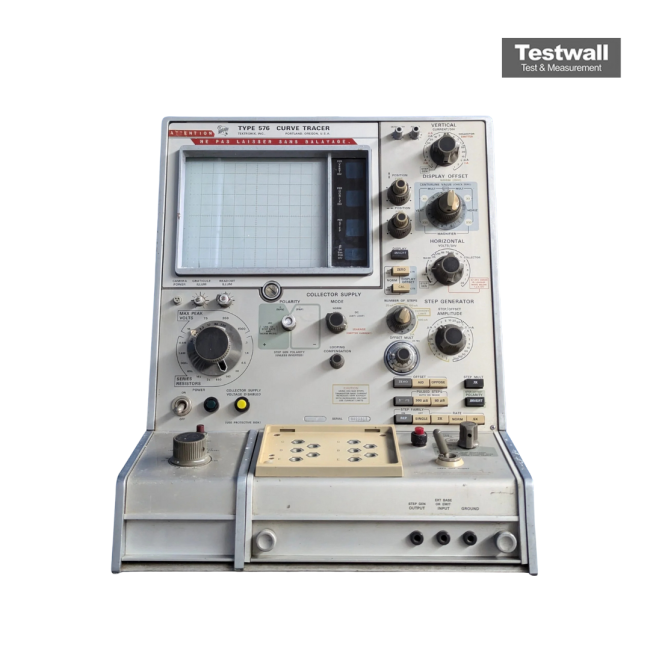

Tektronix 576
Curve Tracer
High-brightness CRT display Display Type
1600V Maximum Collector Voltage
20A Maximum Collector Current
220W maximum Power Dissipation
Transistor Curve Tracer Curve Tracer Type
| Attribute | Value |
|---|---|
| Display Type | High-brightness CRT display |
| Maximum Collector Voltage | 1600V |
| Maximum Collector Current | 20A |
| Power Dissipation | 220W maximum |
| Curve Tracer Type | Transistor Curve Tracer |
| Step Generator Output | 0 to 500mA current steps or 0 to 10V voltage steps |
| Number of Steps | 1 to 10 steps per family |
| Sweep Voltage Output | 0 to 1600V peak, variable |
| Horizontal Sensitivity | 0.05V/div to 500V/div |
| Vertical Sensitivity | 0.2mA/div to 2A/div |
Tektronix 576 Options:
- 576 - Option 01 - Deletes the parameter readout module but maintains provisions for insertion of the module (020-0031-00) at any time
- 576 - 020-0031-00 - Auto Scale-Factor Readout Module
- 576 - A1 - Universal Euro 220 V/16 A, 50 Hz International Power Cord and Plug
- 576 - A2 - UK 240 V/13 A, 50 Hz International Power Cord and Plug
- 576 - A3 - Australian 240 V/10 A, 50 Hz International Power Cord and Plug
- 576 - A4 - North American 240 V/15 A, 60 Hz International Power Cord and Plug
- 576 - A5 - Switzerland 220 V/10 A, 50 Hz International Power Cord and Plug
| Model | 576 |
|---|
The Tektronix 576 is a high-voltage curve tracer designed for advanced semiconductor testing. It supports up to 1,500V collector supply, pulse and continuous testing modes, and multiple measurement formats.
Perfect for testing power devices, the 576 offers comprehensive safety features and delivers precise, repeatable results across applications.
Testwall can supply the used Tektronix 576, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 576.
