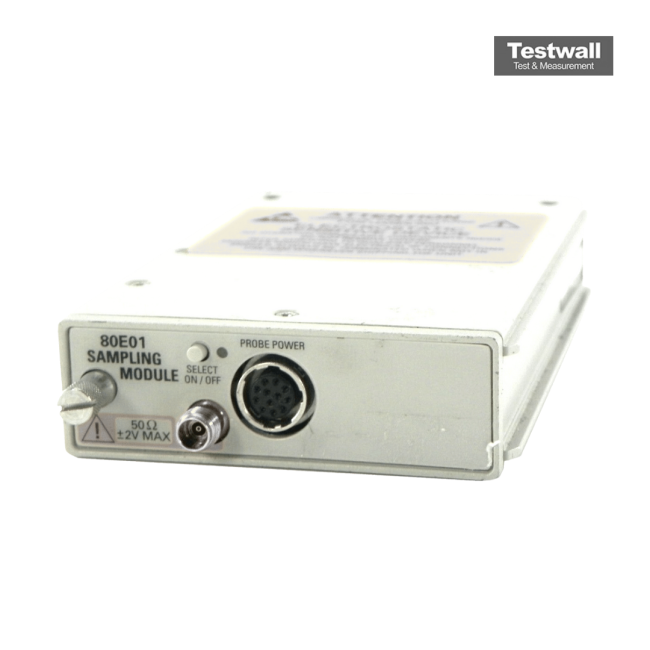

Tektronix 80E01
Electrical Sampling Module, 50 GHz Single Ch.
20 GHz Bandwidth
17.5 ps Rise Time
50 Ω Input Impedance
±2 V Voltage Range
10 mV/div to 200 mV/div Sensitivity Range
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Input Impedance | 50 Ω |
| Voltage Range | ±2 V |
| Sensitivity Range | 10 mV/div to 200 mV/div |
| Maximum Input Voltage | 2.5 V RMS |
| Number of Channels | 2 |
| Connector Type | SMA (female) |
| Compatible Mainframes | DSA8200, CSA8000B, TDS8200 |
| Module Type | Electrical Sampling Module |
Tektronix 80E01 Options:
- 80E01-02 - 80E01X2 - Bundled ordering configuration provides two 80E01 modules
- 80E01-02 - Opt. C3 - Three years of Calibration Service
- 80E01-02 - Opt. C5 - Five years of Calibration Service
- 80E01-02 - Opt. D1 - Calibration data reports
- 80E01-02 - Opt. D3 - Three years of Calibration data reports
- 80E01-02 - Opt. D5 - Five years of Calibration data reports
- 80E01-02 - Opt. R3 - Extended repair warranty to three years
- 80E01-02 - Opt. R5 - Extended repair warranty to five years
| Model | 80E01-02 |
|---|
The Tektronix 80E01 Sampling Module is a single-channel, 50 GHz bandwidth module featuring a calculated rise time of 7 ps and a typical displayed noise level of just 1.8 mVRMS. It includes a female 2.4 mm front connector for high-precision applications.
Ideal for high-frequency signal analysis, the 80E01 ensures reliable waveform capture and measurement in advanced digital communication testing setups.
Testwall can supply the used Tektronix 80E01, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E01.
