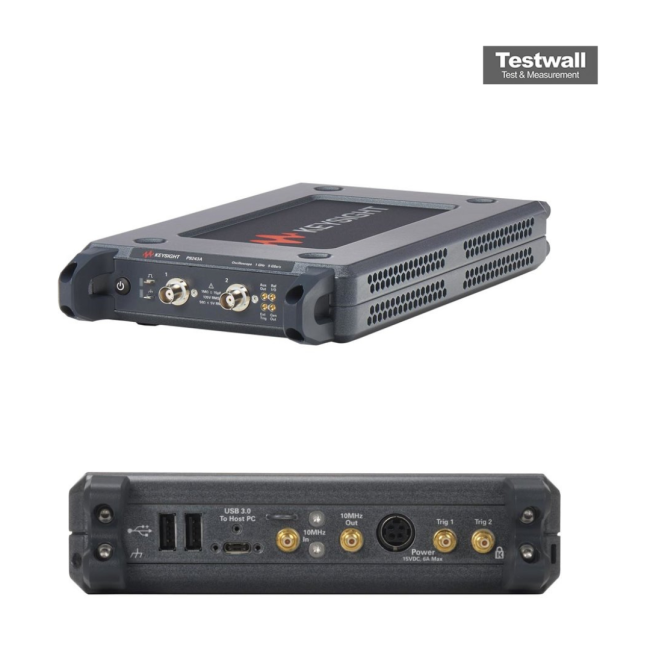

Keysight (Agilent) P9243A USB Oscilloscope - Keysight (Agilent) Streamline Series - 1 GHz
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 2 Analog Channels |
| Maximum Sample Rate | 2 GSa/s (interleaved), 1 GSa/s (per channel) |
| Memory Depth | 100 Mpts (interleaved), 50 Mpts (per channel) |
| Vertical Resolution | 8-bit (up to 12-bit in high resolution mode) |
| Timebase Range | 1 ns/div to 100 s/div |
| Input Impedance | 50 Ω / 1 MΩ |
| Interface | USB 3.0 (PC-based oscilloscope, no built-in display) |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Operating System Compatibility | Windows 10 (64-bit), requires Keysight BenchVue or InfiniiVision software |
Keysight (Agilent) P9243A USB Oscilloscope - Keysight (Agilent) Streamline Series - 1 GHz Options:
- P9243A - P9240BDLA - Application bundle includes all applications listed below
- P9243A - P9240AWGA - WaveGen 20 MHz function/arbitrary waveform generator
- P9243A - P9240FRAA - Frequency response analyzer
- P9243A - P9240MSKA - Mask limit testing
- P9243A - P9240VIDA - Enhanced video/TV Application Package
- P9243A - P9240NFCA - NFC triggering
- P9243A - P9240EMBA - Embedded serial triggering and analysis (I2C)
- P9243A - P9240CMPA - Computer serial triggering and analysis (RS232/422/485/UART)
- P9243A - P9240ATOA - Automotive serial triggering and analysis (CAN, CAN-dbc, CAN FD, LIN)
- P9243A - P9240SNSA - SENT (single edge nibble transmission) triggering and analysis
- P9243A - P9240CXPA - CXPI trigger and decode
- P9243A - P9240AROA - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- P9243A - P9240NRZA - User-definable Manchester and NRZ trigger and analysis
- P9243A - P9240UPDA - USB-PD (Power Delivery) triggering and analysis
- P9243A - Option AMG - Calibration uncertainties/guardbanding (accredited)
| Model | P9243A |
|---|
The Keysight (Agilent) P9243A USB oscilloscope delivers InfiniiVision performance in a compact form, featuring 1 GHz bandwidth, 5 GSa/s sampling rate, and 1,000,000 wfms/s update speed across two analog channels. It integrates 6-in-1 tools including zone trigger and advanced analysis capabilities.
Ideal for complex signal debugging, it includes N2843A probes, USB 3.0 connectivity, external AC-DC adapter, and calibration certificate for instant and reliable setup.
Testwall can supply the used Keysight (Agilent) P9243A USB Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) P9243A USB Oscilloscope.
