Tektronix 80E04
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Voltage Range | ±200 mV (with 50Ω input) |
| Sensitivity | 10 mV/div to 200 mV/div |
| Maximum Input Voltage | ±2 V DC + Peak AC |
| Connector Type | 2.92 mm (K connector) |
| Compatible Mainframe | Tektronix DSA8200, CSA8200, TDS8200 |
| Module Type | Electrical Sampling Module |
Tektronix 80E04 Options:
- 80E04 - Opt. 09 - Include two 80A09 EOS/ESD Protection Devices with the 80E04 module
- 80E04 - Opt. C3 - Calibration Service 3 Years
- 80E04 - Opt. C5 - Calibration Service 5 Years
- 80E04 - Opt. D1 - Calibration Data Report
- 80E04 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80E04 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80E04 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- 80E04 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- 80E04 - Opt. R3 - Repair Service 3 Years (including warranty)
- 80E04 - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | 8.00E+05 |
|---|

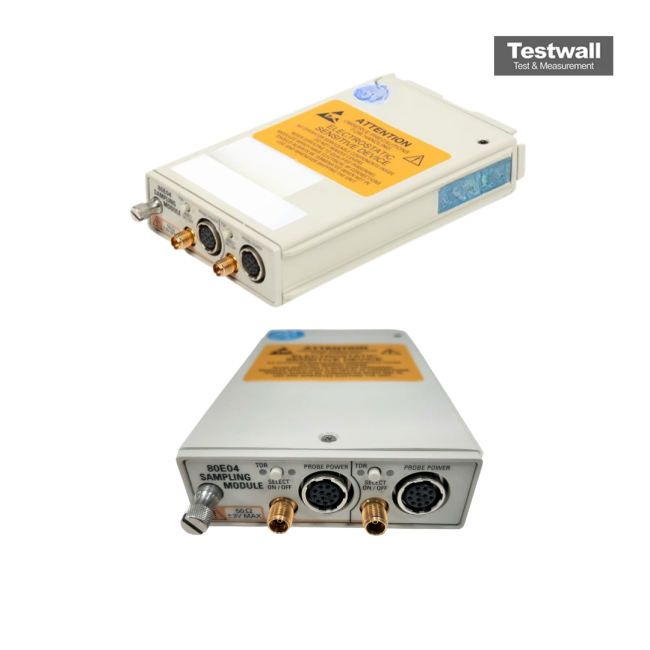

The Tektronix 80E04 is a dual-channel TDR sampling module with 12 ps incident and 23 ps reflected rise time, offering 7 ps acquisition rise time and up to 20 GHz equivalent bandwidth. Each channel has independent step polarity, ideal for differential, common mode TDR, and S-parameter testing.
Designed with independent step generation and receiver deskew, it enables accurate true differential measurements and fixture de-embedding for precise high-speed interconnect analysis using IConnect® software.
Testwall can supply the used Tektronix 80E04, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E04.
