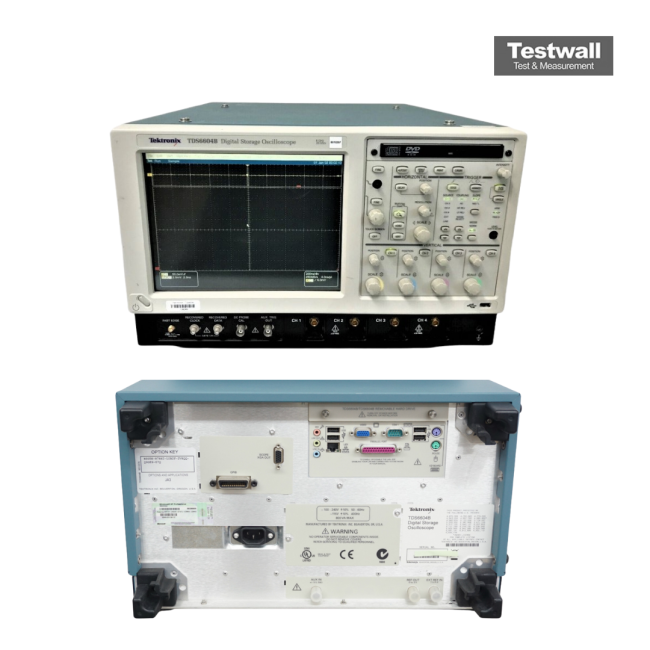

Tektronix TDS6604B
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Sample Rate | 20 GS/s on 2 channels, 10 GS/s on 4 channels |
| Number of Channels | 4 |
| Record Length | Up to 32 million points per channel |
| Vertical Resolution | 8 bits |
| Rise Time | 58.3 ps |
| Input Impedance | 50 Ω |
| Timebase Range | 200 ps/div to 40 s/div |
| Trigger Types | Edge, Glitch, Runt, Width, Transition, Timeout, Pattern, State, Setup/Hold, Serial Pattern |
| Display | 10.4-inch color TFT LCD |
Tektronix TDS6604B Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS6604B - 2M - Extended record length
- TDS6604B - 3M - Extended record length
- TDS6604B - SM - Serial communication mask testing
- TDS6604B - JT3 - TDSJIT3 jitter and timing analysis
- TDS6604B - PWR - TDSPWR3 power measurement and analysis
- TDS6604B - USB - TDSUSB2 USB 2.0 compliance testing
- TDS6604B - ET3 - TDSET3 Ethernet compliance testing
- TDS6604B - 1K - Instrument cart
- TDS6604B - 1R - Rack mount kit
The Tektronix TDS6604B oscilloscope offers 6 GHz bandwidth and 20 GS/s real-time sampling across four 8-bit resolution channels, with enhanced DSP filtering, 32M record length, and advanced trigger modes up to 7 GHz analog bandwidth.
Features include MultiView Zoom, 10.4" XGA display, histogram analysis, eye pattern measurements, and full programmability via GPIB commands for complex test environments.
Testwall can supply the used Tektronix TDS6604B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS6604B.
