Tektronix 80E09B
| Attribute | Value |
|---|---|
| Electrical Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Input Impedance | 50 Ω |
| Sensitivity Range | 10 mV/div to 200 mV/div |
| Maximum Input Voltage | 2.5 V RMS |
| Vertical Resolution | 8 bits (12 bits with averaging) |
| Connector Type | 2.92 mm (K-connector) |
| Compatible Instruments | Tektronix DSA8200, CSA8200, TDS8200 Series Sampling Oscilloscopes |
| Number of Channels | 2 |
| Timebase Range | 200 fs/div to 1 ks/div |
Tektronix 80E09B Options:
- 80E09B - C3 - Calibration Service 3 Years
- 80E09B - C5 - Calibration Service 5 Years
- 80E09B - D1 - Calibration Data Report
- 80E09B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80E09B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80E09B - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- 80E09B - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- 80E09B - R3 - Repair Service 3 Years (including warranty)
- 80E09B - R5 - Repair Service 5 Years (including warranty)
| Model | 80E09B |
|---|

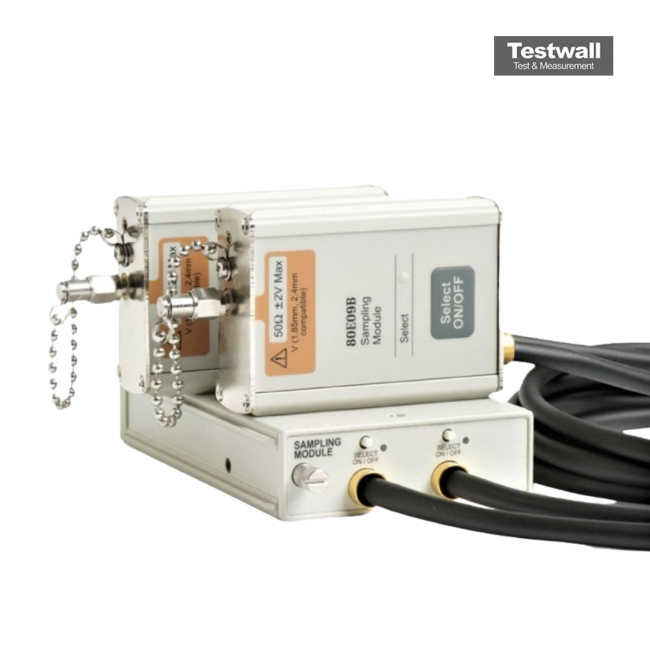

The Tektronix 80E09B dual‑channel remote sampling modules deliver precision signal capture with 450 μVRMS noise at 60 GHz and 300 μV at 30 GHz. Each channel is fitted with a compact remote sampler via a 2‑meter cable to minimize signal loss and ensure optimal test accuracy. The units offer user‑selectable bandwidths—60, 40, or 30 GHz—with a stable 50 ±1.0 Ω input impedance and 1.85 mm female connectors.
Designed for high‑frequency signal analysis, the Tektronix 80E09B ensures fidelity with its optimized remote placement and selectable bandwidth trade‑offs. Suitable for precise DUT testing.
Testwall can supply the used Tektronix 80E09B, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E09B.
