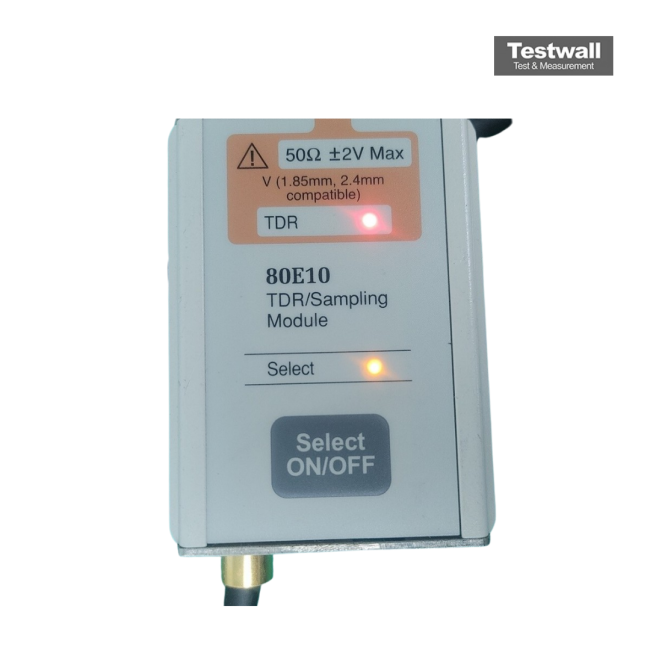

Tektronix 80E10
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Voltage Range | ±200 mV (with 50 Ω termination) |
| Timebase Range | 10 ps/div to 1 ms/div |
| Sampling Rate | Up to 200 kS/s equivalent-time sampling |
| Connector Type | 2.4 mm coaxial input connectors |
| Compatible Mainframe | Tektronix DSA8200 / TDS8200 Series Sampling Oscilloscopes |
| Module Form Factor | Dual-channel sampling module plug-in |
Tektronix 80E10 Options:
- 80E10 - Opt. C3 - Calibration Service 3 Years
- 80E10 - Opt. C5 - Calibration Service 5 Years
- 80E10 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80E10 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80E10 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- 80E10 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- 80E10 - Opt. R5 - Repair Service 5 Years
| Model | 8.00E+11 |
|---|
The Tektronix 80E10 Remote Electrical is a dual-channel TDR sampling module featuring 12 ps incident and 15 ps reflected rise time. It offers true differential measurements, independently selectable step polarity per channel, and up to 50 GHz user-selectable equivalent bandwidth. Each channel has its own fast step generator and acquisition system, ensuring high-precision signal integrity and S-parameter testing.
Designed for crosstalk analysis and fixture de-embedding, it supports 2-meter remote sampling, preserving signal fidelity near DUT. Compatible with Tektronix 8200/8000 Series, it includes deskew and filtering functions.
Testwall can supply the used Tektronix 80E10, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E10.
