Tektronix 82A04B
| Attribute | Value |
|---|---|
| Product Family | Phase Reference Module |
| Compatible Instruments | Tektronix 8200 Series Sampling Oscilloscopes |
| Function | Provides phase reference signal for optical sampling modules |
| Input Frequency Range | 2.4 GHz to 12.5 GHz |
| Input Connector Type | SMA |
| Input Signal Level | -10 dBm to +10 dBm |
| Module Slot Compatibility | Fits standard 8200 Series mainframe module slots |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Form Factor | Plug-in module for 8200 Series mainframe |
Tektronix 82A04B Options:
- 82A04B - 60G - Extends the BW range to 60 GHz
- 82A04B - C5 - Calibration Service 5 Years
- 82A04B - R3 - Repair Service 3 Years (including warranty)
- 82A04B - R5 - Repair Service 5 Years (including warranty)
| Model | 82A04B |
|---|

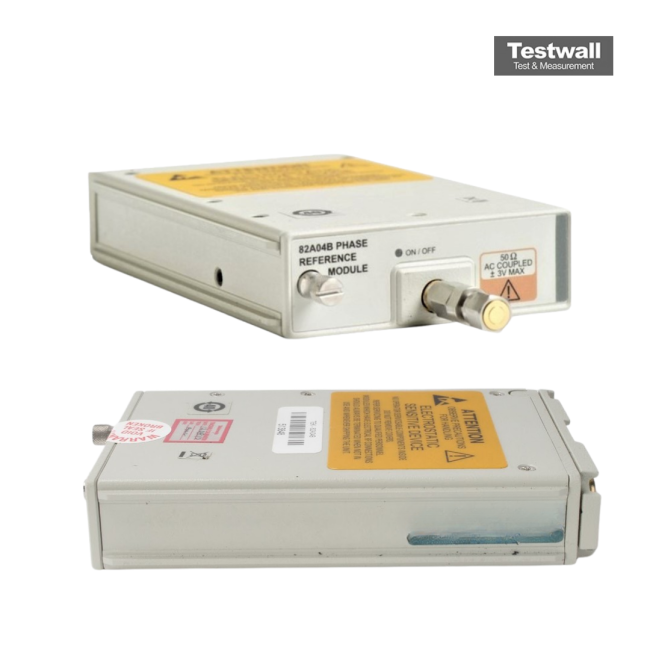

The Tektronix 82A04B Phase Reference Module is designed to expand the performance of the DSA8300 Digital Serial Analyzer. It provides exceptionally low jitter and drift sample timing data using the phase of a user-supplied clock signal. This precision ensures accurate high-speed digital signal evaluation.
Ideal for precise measurement environments, the 82A04B enhances testing stability by using a stable phase reference. It integrates seamlessly into advanced analysis setups.
Testwall can supply the used Tektronix 82A04B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 82A04B.
