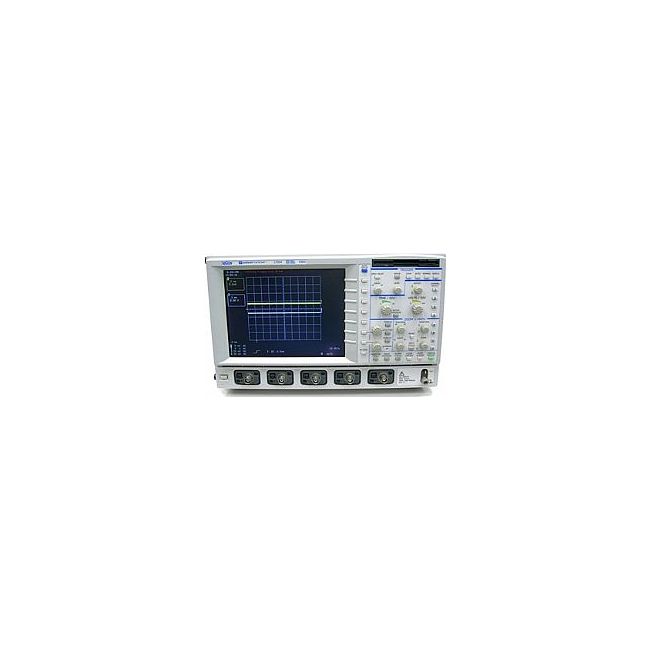

LeCroy LT224
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 500 MS/s |
| Record Length | 25,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 1 ns/div to 1000 s/div |
| Input Impedance | 1 MΩ / 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Width, Pattern, TV, Qualified, Slew Rate, Dropout |
| Model | LT224 |
|---|
The LeCroy LT224 is a 200 MHz, 4-channel digital oscilloscope designed for educational and entry-level R&D applications. It delivers a 20 MSa/s single-shot and up to 10 GSa/s repetitive sampling rate with a 100,000 pt/sec record length. With AC/DC input coupling, FFT, and intuitive controls, it ensures flexible and precise signal analysis. The display features a 21.336 cm color CRT for clear waveform viewing.
Supporting simultaneous 4-channel acquisition, it features auto-setup, basic waveform math, and a wide vertical sensitivity range from 2 mV/div to 10 V/div, making it suitable for diverse signal types and debugging tasks.
Testwall can supply the used LeCroy LT224, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy LT224.
