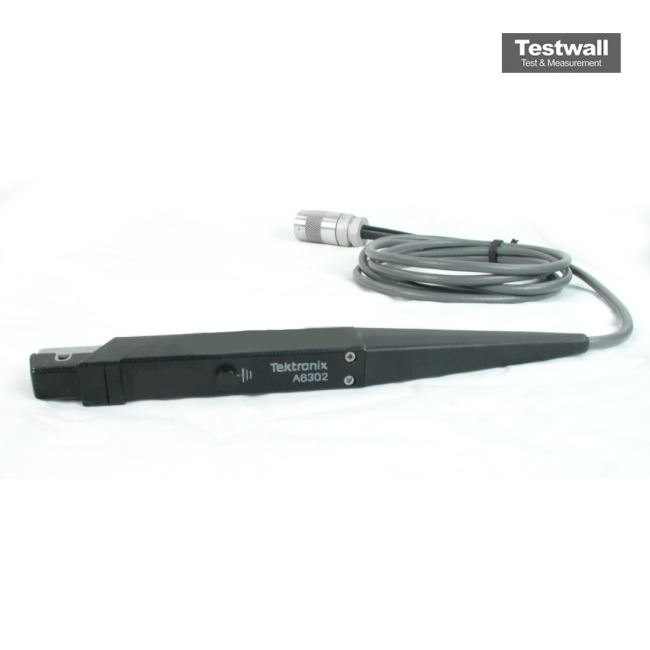

Tektronix A6302A
20 A RMS / 50 A Peak Current Range
DC to 50 MHz Bandwidth
100 mV/A Sensitivity
5 mm (0.2 in) Maximum Conductor Diameter
BNC Output Connector
| Attribute | Value |
|---|---|
| Current Range | 20 A RMS / 50 A Peak |
| Bandwidth | DC to 50 MHz |
| Sensitivity | 100 mV/A |
| Maximum Conductor Diameter | 5 mm (0.2 in) |
| Output Connector | BNC |
| Power Requirement | Requires AM503 or AM503B Current Probe Amplifier |
| Rise Time | 7 ns |
| DC Accuracy | ±2% typical |
| Operating Temperature | 0°C to +50°C |
| Probe Type | AC/DC Current Probe |
| Model | A6302A |
|---|
The Tektronix A6302A is a high-precision AC/DC current probe engineered for transient current measurement in high-speed circuits. It supports up to 20A RMS continuously with a 50 MHz bandwidth, requiring AM503/AM503B/AM5030 amplifiers. Its compact, clamp-on design ensures seamless integration.
Optimized for power electronics and switching circuits, it allows for accurate monitoring in dynamic electronic environments.
Testwall can supply the used Tektronix A6302A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6302A.
