Tektronix P8018
| Attribute | Value |
|---|---|
| Probe Type | High Voltage Passive Probe |
| Bandwidth | 50 MHz |
| Maximum Input Voltage | 40 kV DC + Peak AC |
| Attenuation Ratio | 1000:1 |
| Input Resistance | 100 MΩ |
| Input Capacitance | 3 pF |
| Cable Length | 3 m (approximately 10 ft) |
| Rise Time | 7 ns |
| Compensation Range | 10 pF to 40 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connector |
Tektronix P8018 Options:
- P8018 - 016-1936-00 - 20 each Ground Clips (Replaceable Item)
- P8018 - 174-4879-00 - 20 GHz SMA Cable with Parallel Control Line (1 Meter Length) (Replaceable Item)
| Model | P8018 |
|---|

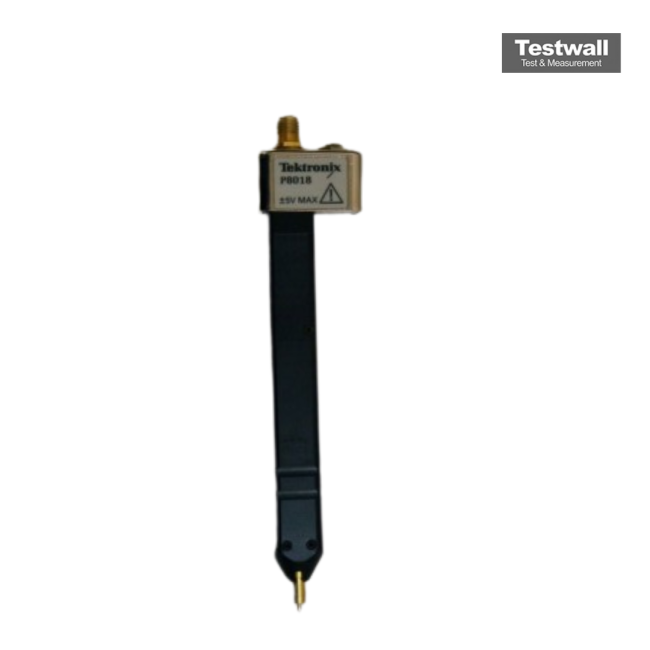

The Tektronix P8018 Handheld TDR Probe is a single-ended passive probe with >20 GHz bandwidth, 50 Ω input impedance, and a precision 20 GHz SMA cable, ideal for TDR circuit board impedance analysis and high-speed signal diagnostics. It includes a 1.0 ns propagation delay and operates with 1X attenuation and a 1.8 mm probe pitch for enhanced precision.
Specifically designed to work with the 80A02 EOS/ESD Protection Module, the P8018 features a unique pressure-sensitive tip and control circuit that protects sampling modules from electro-overstress and static discharge during signal acquisition.
Testwall can supply the used Tektronix P8018, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P8018.
