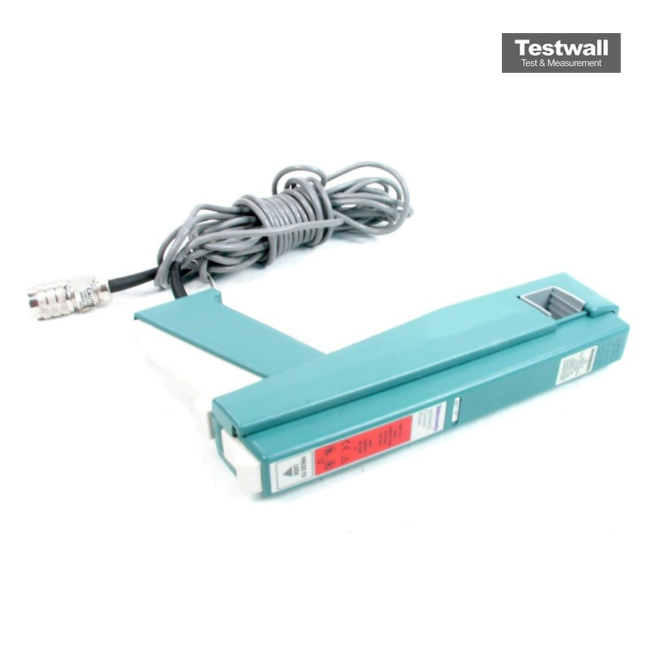

Tektronix A6304XL
| Attribute | Value |
|---|---|
| Maximum Current | 150 A RMS / 500 A Peak |
| Frequency Bandwidth | DC to 2 MHz |
| Sensitivity | 10 mV/A, 100 mV/A |
| Maximum Conductor Diameter | 44 mm (1.73 in) |
| Output Connector | BNC |
| Power Requirement | Requires TCPA300 or TCPA400 Amplifier |
| Core Type | Split-Core (Clamp-On) |
| DC Accuracy | ±1% of reading ±0.5 A |
| Operating Temperature | 0°C to +50°C |
| Safety Rating | CAT I, 300 V |
| Model | A6304XL |
|---|
The Tektronix A6304XL is a high-performance 2 MHz current probe capable of handling 500 A continuous and 700 A peak. With an extended 8‑meter cable, it allows precise measurements across DC to 2 MHz bandwidth, ideal for motor drives, inverters, and power electronics testing where access to distant test points is required.
This probe supports high-current measurements in applications such as satellite systems, avionics, transportation, and industrial power supplies, ensuring accuracy in dynamic environments.
Testwall can supply the used Tektronix A6304XL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6304XL.
