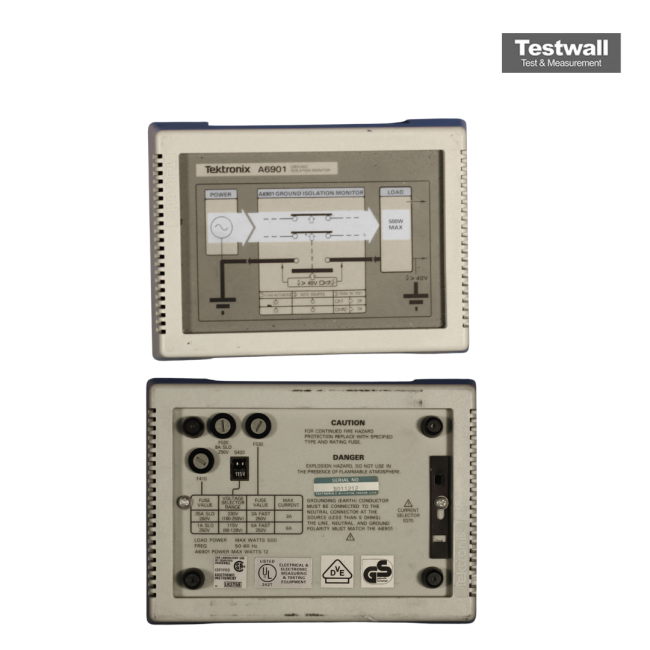

Tektronix A6901
| Attribute | Value |
|---|---|
| Function | Isolation Transformer |
| Input Voltage | 105–125 VAC / 210–250 VAC |
| Output Voltage | 105–125 VAC |
| Power Rating | 300 VA |
| Frequency Range | 48–66 Hz |
| Isolation Voltage | 1500 V RMS (primary to secondary) |
| Output Receptacles | 2 × Standard AC Outlets |
| Leakage Current | Less than 0.5 mA |
| Intended Use | Safe floating-ground connection for oscilloscopes and test instruments |
| Compatibility | Designed for use with Tektronix oscilloscopes and compatible test equipment |
| Model | A6901 |
|---|
The Tektronix A6901 offers DC trip voltages up to ±40 V DC or 28 VRMS (40 V peak), with selectable current trip levels of ±0.5 mA, ±3.5 mA, and ±5 mA max. It supports trip delays under 200 ms and operates across line voltages of 90-128 V or 180-250 V at 48-66 Hz, with a load power capacity of up to 500 W.
Ideal for precise overcurrent protection in electronic testing, the Tektronix A6901 ensures reliability and safety with flexible voltage and current trip configurations.
Testwall can supply the used Tektronix A6901, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6901.
