Tektronix

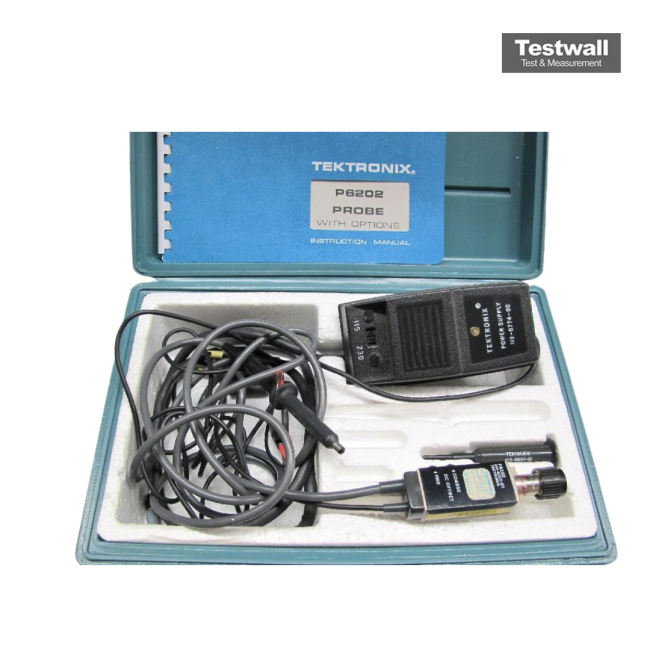

Tektronix P6202
500MHz FET Probe
500 MHz Bandwidth
700 ps Rise Time
1 MΩ (with 10X attenuation) Input Impedance
10X Attenuation Ratio
9.5 pF (typical) Input Capacitance
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Rise Time | 700 ps |
| Input Impedance | 1 MΩ (with 10X attenuation) |
| Attenuation Ratio | 10X |
| Input Capacitance | 9.5 pF (typical) |
| Maximum Input Voltage | 400V CAT II (DC + Peak AC) |
| Cable Length | 1.2 m (approximately 4 ft) |
| Probe Type | Active FET Probe |
| Dynamic Range | ±12V |
| Compatible Oscilloscopes | Tektronix oscilloscopes with standard BNC input |
| Model | P6202 |
|---|
The Tektronix P6202 FET Probe operates from DC to 500 MHz with a high input impedance, offering 2 pF input capacitance and 10 MΩ resistance. It includes a 2-meter cable, built-in power supply, and supports AC/DC coupling with ±200 V variable DC offset.
It provides selectable 10X and optional 100X attenuation and is suitable for use with 50 Ω or 1 MΩ input termination, ensuring adaptability for various signal analysis applications.
Testwall can supply the used Tektronix P6202 FET Probe, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6202 FET Probe.
