Tektronix AA5001
| Attribute | Value |
|---|---|
| Frequency Range | 5 Hz to 600 kHz |
| Distortion Measurement Range | 0.0003% to 100% THD |
| Input Voltage Range | 100 mV to 300 V RMS |
| Input Impedance | 100 kΩ |
| Residual Distortion | Less than 0.0003% THD |
| Display Type | Digital LED Readout |
| Measurement Modes | THD (Total Harmonic Distortion) and Signal Level |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Output | Recorder output for external monitoring |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | AA5001 |
|---|

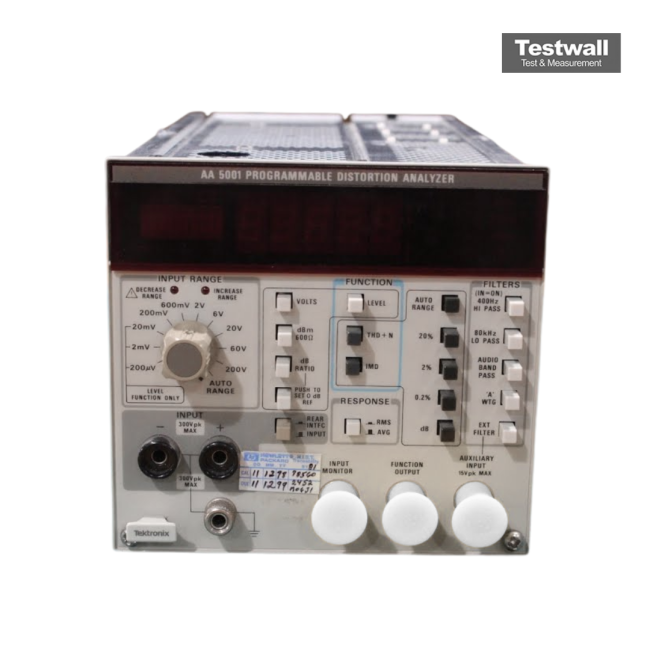

The Tektronix AA 5001 is a programmable Distortion Analyzer in a TM 5000 plug-in, offering THD, gain/loss, SNR, and audio level measurements. Its 3½ digit LED display provides direct readings with no manual adjustments, ranging from 10 Hz to 100 kHz with harmonic detection up to 300 kHz.
Equipped with four switchable filters and an auto-ranging voltmeter from 200 µV to 200 V, the AA 5001 also features residual noise < 3 µV and HP-IB compatibility for programmability.
Testwall can supply the used Tektronix AA 5001, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AA 5001.
