Tektronix 80A02
| Attribute | Value |
|---|---|
| Bandwidth | DC to 4.5 GHz |
| Rise Time | 78 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Maximum Input Voltage | ±2.5 V |
| Sensitivity Range | 10 mV/div to 500 mV/div |
| Compatible Mainframes | CSA8000, TDS8000, DSA8200 Series |
| Connector Type | SMA |
| Operating Temperature | 0°C to +50°C |
| Module Form Factor | Single-slot sampling module |
Tektronix 80A02 Options:
- 80A02 - 174-5230-xx - SlotSaver Adapter Extender Cable. Provides power and control to the 80A02 when operated externally from the DSA/TDS/CSA mainframe, saving slot space (compatible with 80A06 and 80A02)
| Model | 80A02 |
|---|

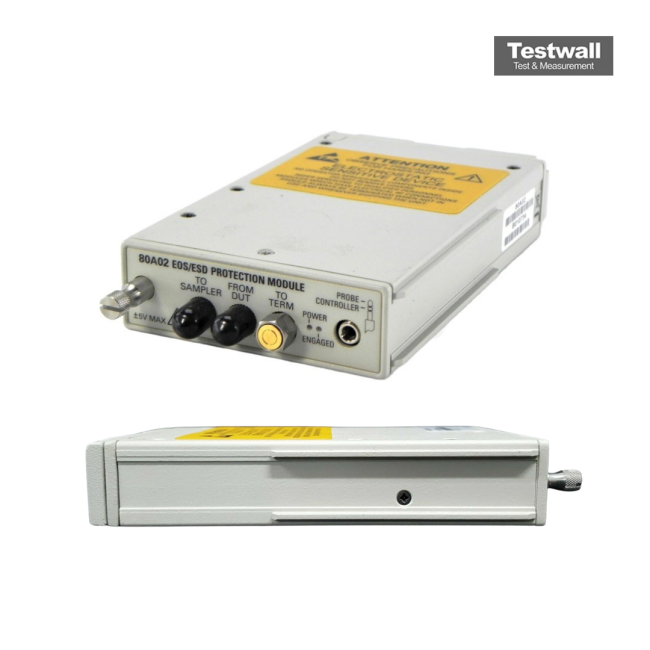

The Tektronix 80A02 EOS/ESD Isolation Module provides vital protection for DSA8300 electrical sampling module inputs, guarding against electrostatic discharge (ESD) and electro-overstress (EOS). Featuring a single-channel design, it integrates directly with Tektronix extender cables and the sampling mainframe. When paired with 80E04 or SD24 TDR modules, it achieves a reflected rise time of less than 37 ps.
Ideal for high-speed signal analysis, the 80A02 is suited to TDR-based circuit board and cable impedance testing, especially where static charges are significant.
Testwall can supply the used Tektronix 80A02, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80A02.
