Tektronix AFG2021
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Frequency Range | 1 µHz to 20 MHz |
| Waveform Types | Sine, Square, Ramp, Pulse, Noise, DC, and 12 predefined arbitrary waveforms |
| Arbitrary Waveform Memory | 128K points per channel |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω), 2 mVpp to 20 Vpp (into open circuit) |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14 bits |
| Output Impedance | 50 Ω |
| Modulation Types | AM, FM, PM, FSK, PWM |
| Display | 3.5-inch color LCD display |
Tektronix AFG2021 Options:
- AFG2021 - Opt GL - GPIB and LAN interfaces
- AFG2021 - Opt L0 - English manual
- AFG2021 - Opt L1 - French manual
- AFG2021 - Opt L2 - Italian manual
- AFG2021 - Opt L3 - German manual
- AFG2021 - Opt L4 - Spanish manual
- AFG2021 - Opt L5 - Japanese manual
- AFG2021 - Opt L6 - Portuguese manual
- AFG2021 - Opt L7 - Simplified Chinese manual
- AFG2021 - Opt L8 - Traditional Chinese manual
- AFG2021 - Opt L9 - Korean manual
- AFG2021 - Opt L10 - Russian manual
- AFG2021 - Opt L99 - No manual
- AFG2021 - Opt A0 - North America power plug (115 V, 60 Hz)
- AFG2021 - Opt A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG2021 - Opt A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG2021 - Opt A3 - Australia power plug (240 V, 50 Hz)
- AFG2021 - Opt A5 - Switzerland power plug (220 V, 50 Hz)
- AFG2021 - Opt A6 - Japan power plug (100 V, 50/60 Hz)
- AFG2021 - Opt A10 - China power plug (50 Hz)
- AFG2021 - Opt A11 - India power plug (50 Hz)
- AFG2021 - Opt A12 - Brazil power plug (60 Hz)
- AFG2021 - Opt A99 - No power cord
- AFG2021 - Opt C3 - Calibration Service 3 Years
- AFG2021 - Opt C5 - Calibration Service 5 Years
- AFG2021 - Opt D1 - Calibration Data Report
- AFG2021 - Opt D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG2021 - Opt D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG2021 - Opt R5 - Repair Service 5 Years (including warranty)
- AFG2021 - Opt R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | AFG2021 |
|---|

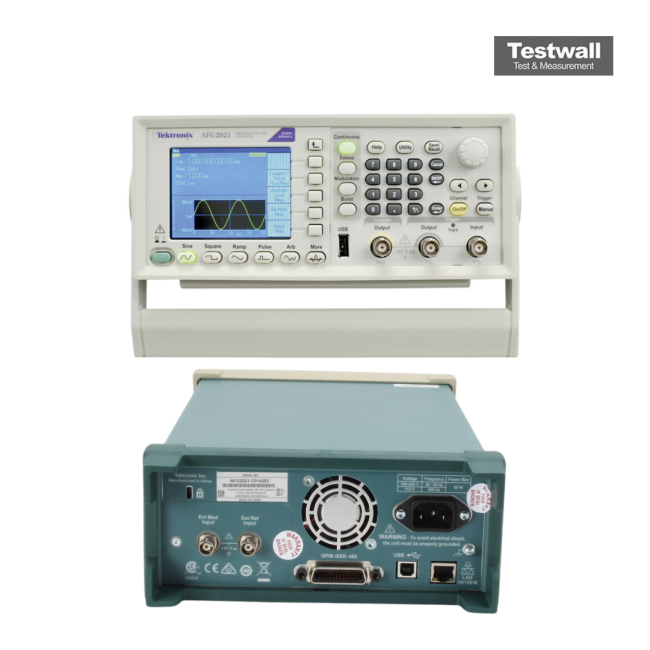

The Tektronix AFG2021 Arbitrary Function Generator offers 20 MHz sine and 10 MHz pulse waveforms, 250 MS/s sample rate, and 14-bit resolution, ideal for generating complex and simple signals. With 12 built-in waveforms, modulation, noise generation, and a 3.5" color display, it ensures precision and usability. USB ports, internal memory, and software tools like ArbExpress provide flexible signal creation and management.
This versatile generator fits bench and rack setups, supports USB and optional GPIB/LAN interfaces, and simplifies tasks with a user-friendly UI. Suitable for design, testing, and signal simulation in diverse applications.
Testwall can supply the used Tektronix AFG2021, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG2021.
