Tektronix

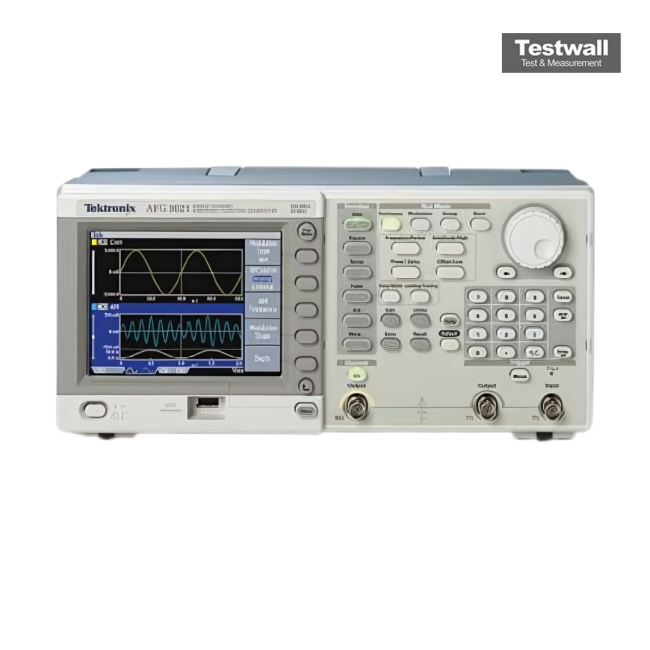

Tektronix AFG3011
10MHz - 15MHz Function Generator
1 µHz to 20 MHz Frequency Range
1 Number of Channels
Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Arbitrary Waveform Types
1 mVpp to 10 Vpp (into 50 Ω) Amplitude Range
128K points per channel Arbitrary Waveform Memory
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 20 MHz |
| Number of Channels | 1 |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Arbitrary |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Arbitrary Waveform Memory | 128K points per channel |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14 bits |
| Output Impedance | 50 Ω |
| Modulation Types | AM, FM, PM, FSK, PWM |
| Connectivity/Interface | USB (device and host), GPIB (optional) |
| Model | AFG3011 |
|---|
The Tektronix AFG3011 is a single-channel arbitrary/function generator that delivers precise waveform outputs up to 10 MHz with 14-bit vertical resolution.
It supports sine waves, custom waveforms via USB, and on-device editing.
Designed for use in educational labs and basic signal simulations, the AFG3011 offers easy waveform creation and compact, bench-friendly usability.
Testwall can supply the used Tektronix AFG3011, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Tektronix AFG3011.
