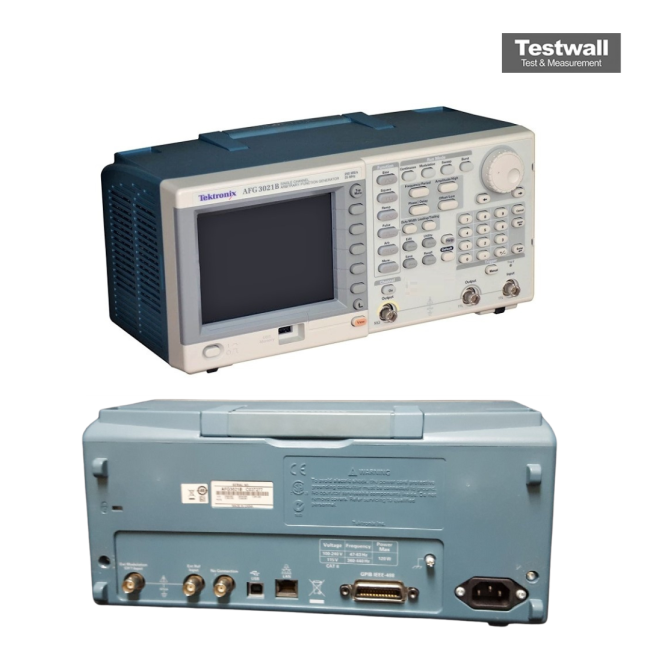

Tektronix AFG3021B
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Frequency Range | 1 µHz to 25 MHz |
| Waveform Types | Sine, Square, Ramp, Pulse, Arbitrary, Noise, DC |
| Arbitrary Waveform Memory | 128K points per channel |
| Sample Rate | 250 MS/s |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Vertical Resolution | 14-bit |
| Output Impedance | 50 Ω |
| Modulation Types | AM, FM, PM, FSK, PWM |
| Connectivity / Interface | USB, GPIB (optional), LAN (optional) |
| Model | AFG3021B |
|---|
The Tektronix AFG3021B offers 25 MHz sine waveforms, 250 MS/s arbitrary waveforms, and pulse waveforms with adjustable edge times. With a large 5.6" display, 25 shortcut keys, and ArbExpress software, it allows for seamless waveform creation and intuitive operation. Featuring AM, FM, PM, FSK, PWM, USB/GPIB/LAN interfaces, and dual-channel options, it provides unmatched versatility and performance for various applications.
Ideal for electronic testing, sensor simulation, and functional testing in education and R&D, the AFG3021B supports waveform creation up to 128K points, signal combining, and high time-base stability of ±1 ppm/year.
Testwall can supply the used Tektronix AFG3021B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3021B.
