Tektronix AFG3021C
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 25 MHz |
| Number of Channels | 1 Channel |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and 12 predefined waveforms; 128K-point arbitrary waveforms |
| Amplitude Range | 1 mVp-p to 10 Vp-p (into 50 Ω) |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Output Impedance | 50 Ω |
| Frequency Accuracy | ±1 ppm (18°C to 28°C) |
| Connectivity / Interface | USB 2.0 Host and Device ports, GPIB (optional), LAN (optional via GPIB-LAN adapter) |
Tektronix AFG3021C Options:
- AFG3021C - A0 - North America power plug (115 V, 60 Hz)
- AFG3021C - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3021C - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3021C - A3 - Australia power plug (240 V, 50 Hz)
- AFG3021C - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3021C - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3021C - A10 - China power plug (50 Hz)
- AFG3021C - A11 - India power plug (50 Hz)
- AFG3021C - A12 - Brazil power plug (60 Hz)
- AFG3021C - A99 - No power cord
- AFG3021C - L0 - English manual (071-1631-xx)
- AFG3021C - L1 - French manual (071-1632-xx)
- AFG3021C - L2 - Italian manual (071-1669-xx)
- AFG3021C - L3 - German manual (071-1633-xx)
- AFG3021C - L4 - Spanish manual (071-1670-xx)
- AFG3021C - L5 - Japanese manual (071-1634-xx)
- AFG3021C - L6 - Portuguese manual (071-3042-xx)
- AFG3021C - L7 - Simple Chinese manual (071-1635-xx)
- AFG3021C - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3021C - L9 - Korean manual (071-1637-xx)
- AFG3021C - L10 - Russian manual (071-1638-xx)
- AFG3021C - L99 - No manual
- AFG3021C - C3 - Calibration Service 3 Years
- AFG3021C - C5 - Calibration Service 5 Years
- AFG3021C - D1 - Calibration Data Report
- AFG3021C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3021C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3021C - R5 - Repair Service 5 Years (including warranty)
- AFG3021C - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of instrument purchase
- AFG3021C - SILV400 - Standard warranty extended to 5 years
| Model | AFG3021C |
|---|

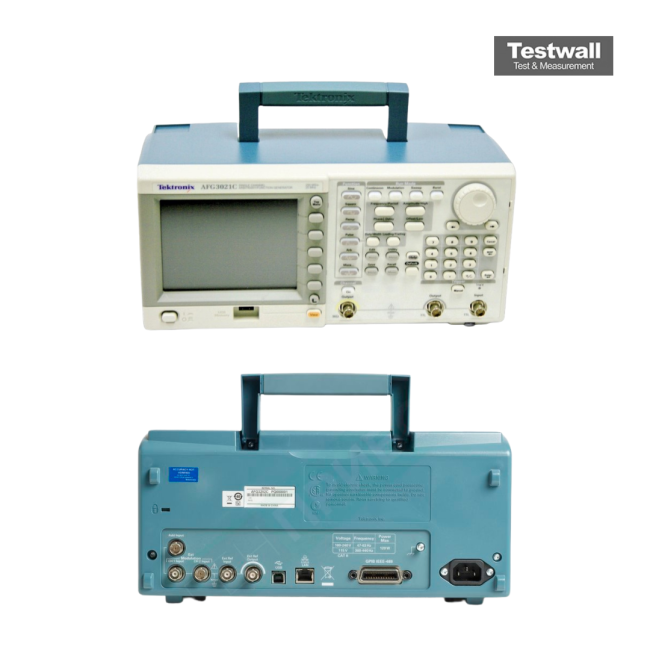

The Tektronix AFG3021C is a single-channel arbitrary/function generator from the AFG3000C series, delivering sine wave frequencies from 1µHz to 25MHz. It supports 12 standard waveforms and arbitrary waveform generation up to 128K length with high sampling rates. The unit offers advanced modulation capabilities (AM, FM, PM, FSK, PWM), variable pulse edge times, and external signal addition. Featuring a 5.6-inch color TFT LCD, USB, LAN, and GPIB interfaces, it ensures seamless operation and waveform visibility.
Perfect for electronic testing, sensor simulation, education, and training, this generator includes sweep and burst modes, intuitive user interface, and ArbExpress™ software. LabVIEW and LabWindows/IVI-C drivers enhance system integration.
Testwall can supply the used Tektronix AFG3021C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3021C.
