Tektronix AFG3022
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Frequency Range | 1 µHz to 25 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and 12 predefined waveforms |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Arbitrary Waveform Memory | 128 K points per channel |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Output Impedance | 50 Ω |
| Connectivity | USB, GPIB (optional), and LAN (optional) |
| Model | AFG3022 |
|---|

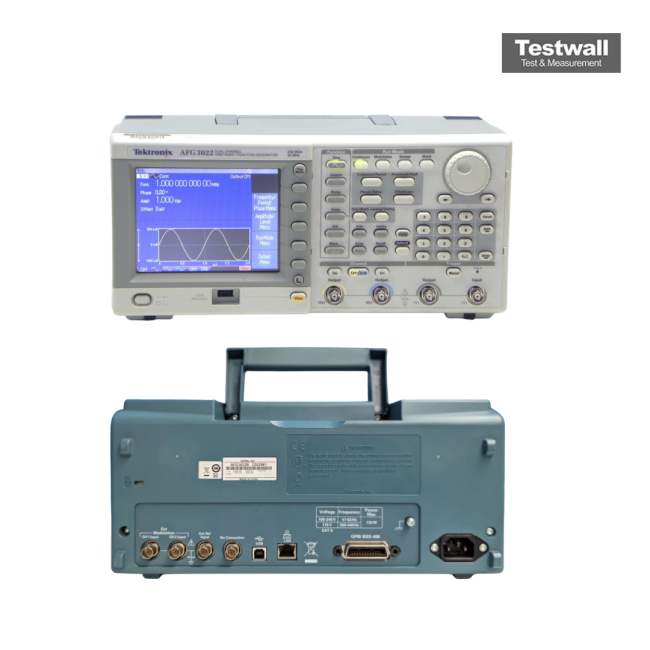

The Tektronix AFG3022 is a dual-channel arbitrary/function generator with a frequency range up to 25 MHz, offering precise sine, square, and pulse waveforms with 14-bit vertical resolution and 128 kpts memory depth per channel. It provides variable output impedance, phase synchronization, and extensive modulation capabilities, ensuring high signal fidelity for complex testing scenarios.
Ideal for research, design validation, and educational applications, the AFG3022 supports advanced triggering, burst modes, and sweep functions, enabling engineers to simulate real-world signals with precision and flexibility.
Testwall can supply the used Tektronix AFG3022 Arbitrary / Function Generator, 25MHz, 2 Channel, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3022 Arbitrary / Function Generator, 25MHz, 2 Channel.
