Tektronix AFG3022C
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Frequency Range | 1 µHz to 25 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sin(x)/x, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, and Arbitrary |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω), 2 mVpp to 20 Vpp (into open circuit) |
| Arbitrary Waveform Length | 2 to 131,072 points (128 K) |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14 bits |
| Frequency Accuracy | ±1 ppm from 20 °C to 45 °C |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Connectivity / Interfaces | USB, GPIB, and LAN (LXI Class C compliant) |
| Model | AFG3022C |
|---|

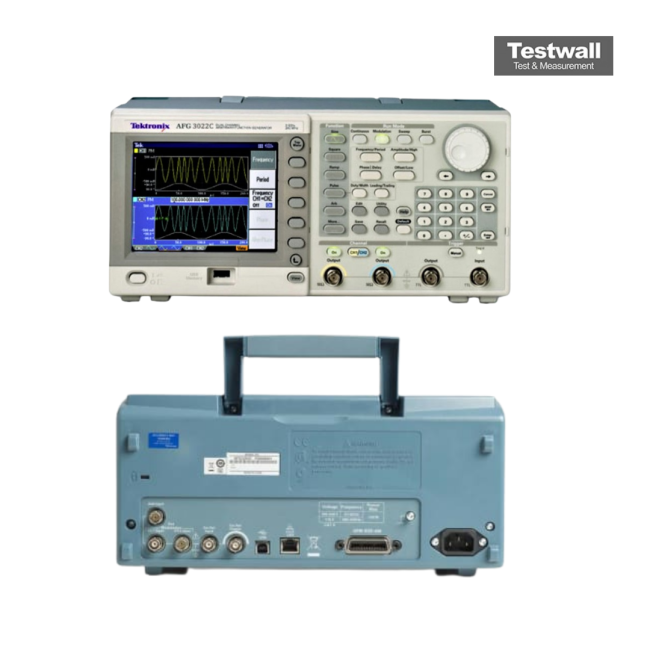

The Tektronix AFG3022C is a dual-channel arbitrary function generator offering 25 MHz sine waveform output with 14-bit resolution and 250 MS/s sampling. It supports 128 K-point waveform memory, variable edge times, and a ±1 ppm/year time base stability. The device features a 5.6-inch color TFT LCD, intuitive controls, and multi-language support.
With capabilities like AM, FM, PM, FSK, PWM, sweep, burst, and external signal addition, the AFG3022C is suitable for diverse test applications. USB, GPIB, and LAN ports provide versatile connectivity.
Testwall can supply the used Tektronix AFG3022C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3022C.
