Tektronix AFG31252
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 250 MHz |
| Sample Rate | 2 GSa/s |
| Vertical Resolution | 16-bit |
| Waveform Memory Depth | 131,072 points (128 K) per channel |
| Output Amplitude Range | 1 mVpp to 10 Vpp (into 50Ω), 2 mVpp to 20 Vpp (open circuit) |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, Cardiac |
| Frequency Resolution | 1 µHz |
| Display | 9-inch capacitive touchscreen display |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Tektronix AFG31252 Options:
- AFG31252 - MEM - Extends arbitrary waveform memory to 128 Mpts/ch in Advanced mode
- AFG31252 - SEQ - Enables Sequence, Triggered and Gated modes in Advanced mode
- AFG31252 - AUP-AFG3SEQ-2 - Enables Sequence, Triggered, and Gated modes in Advanced mode (node locked license, two channel)
- AFG31252 - AUP-AFG3MEM-2 - Extends arb memory to 128 Mpts/ch in Advanced mode (node locked license, two channel)
- AFG31252 - AUP-AFG3BW150T250-2 - Bandwidth extension from 150 MHz to 250 MHz (two channel)
- AFG31252 - A0 - North America power plug (115 V, 60 Hz)
- AFG31252 - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG31252 - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG31252 - A3 - Australia power plug (240 V, 50 Hz)
- AFG31252 - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG31252 - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG31252 - A10 - China power plug (50 Hz)
- AFG31252 - A11 - India power plug (50 Hz)
- AFG31252 - A12 - Brazil power plug (60 Hz)
- AFG31252 - A99 - No power cord
- AFG31252 - L0 - English front panel overlay (default)
- AFG31252 - L1 - French front panel overlay
- AFG31252 - L2 - Italian front panel overlay
- AFG31252 - L3 - German front panel overlay
- AFG31252 - L4 - Spanish front panel overlay
- AFG31252 - L5 - Japanese front panel overlay
- AFG31252 - L6 - Portuguese front panel overlay
- AFG31252 - L7 - Simplified Chinese front panel overlay
- AFG31252 - L8 - Traditional Chinese front panel overlay
- AFG31252 - L9 - Korean front panel overlay
- AFG31252 - L10 - Russian front panel overlay
- AFG31252 - L99 - No front panel overlay
- AFG31252 - C3 - Calibration Service 3 Years
- AFG31252 - C5 - Calibration Service 5 Years
- AFG31252 - D1 - Calibration Data Report
- AFG31252 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG31252 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG31252 - R5 - Repair Service 5 Years (including warranty)
- AFG31252 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
- AFG31252 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
| Model | AFG31252 |
|---|

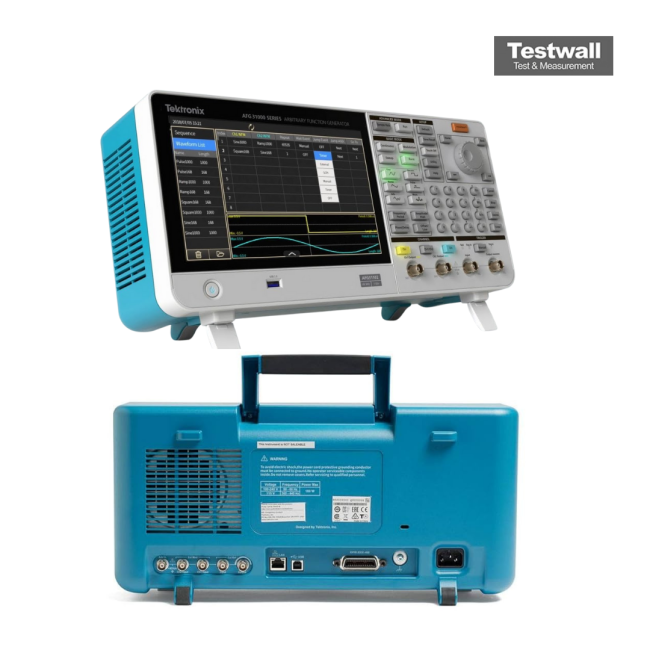

The Tektronix AFG31252 Arbitrary Function Generator delivers 250 MHz bandwidth across 2 channels, 2 GS/s sampling, and 16 MSa/ch memory depth. With 14-bit resolution, a 9-inch capacitive display, real-time waveform monitoring via InstaView, and programmable waveform sequencing up to 256 steps, it offers precise signal fidelity and flexibility.
Ideal for advanced research and testing, the AFG31252 includes built-in waveform creation, multi-unit sync, over-voltage protection, and TekBench compatibility for seamless data analysis and operation.
Testwall can supply the used Tektronix AFG31252 Arbitrary Function Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31252 Arbitrary Function Generator.
