Tektronix AFG5101
| Attribute | Value |
|---|---|
| Frequency Range | DC to 10 MHz |
| Output Amplitude | 10 mVp-p to 10 Vp-p (into 50Ω) |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and Arbitrary |
| Arbitrary Waveform Memory Depth | 16,000 points per channel |
| Sample Rate | 40 MSa/s |
| Vertical Resolution | 12-bit |
| Output Impedance | 50Ω |
| Frequency Resolution | 1 µHz |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Interface | GPIB (IEEE-488) |
Tektronix AFG5101 Options:
- AFG5101 - Opt. 02 - Adds a frequency lock synthesizer that provides a stable output waveform by locking the output to an internal quartz crystal. Operates in continuous mode only, from 12.1 Hz to 12 MHz.
| Model | AFG5101 |
|---|

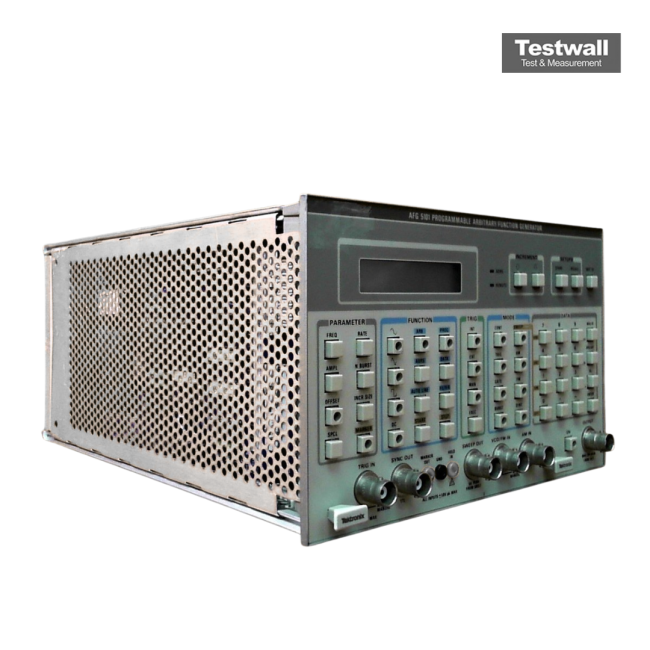

The Tektronix AFG5101 is a three-wide programmable arbitrary/function generator module for TM 5003 or TM 5006 Mainframes. It operates over 0.012Hz–12MHz with 8K waveform memory, 150ns risetime, and 3.5-bit resolution. It includes 5 predefined waveforms, GPIB connectivity, 99 waveform storage, and supports sine, square, triangle, and ramp outputs.
Ideal for signal simulation and testing, the AFG5101 offers sweep modes (arbitrary, linear, log) and modulation options (AM/FM) with output accuracy of 2% and impedance of 50 Ohm.
Testwall can supply the used Tektronix AFG5101, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG5101
