Tektronix AWG2021
| Attribute | Value |
|---|---|
| Frequency Range | DC to 10 MHz |
| Sample Rate | Up to 1 GS/s |
| Vertical Resolution | 12 bits |
| Memory Depth | Up to 64K points per channel |
| Number of Channels | 2 analog output channels |
| Output Amplitude | 20 mVp-p to 2 Vp-p (into 50 Ω) |
| Output Impedance | 50 Ω |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, and Arbitrary |
| Interface | GPIB (IEEE-488.2) |
| Power Requirements | 100 to 240 VAC, 47 to 63 Hz |
Tektronix AWG2021 Options:
- AWG2021 - Opt. 02 - Independent, 256 K second channel
- AWG2021 - Opt. 03 - ECL digital cable (12-Bit 250 MHz differential ECL digital port, eliminates RS-232 interface)
- AWG2021 - Opt. 04 - TTL digital cable (12/24-Bit 100 MHz TTL digital levels, eliminates RS-232 interface)
- AWG2021 - Opt. 09 - Add FFT editor. Allows editing waveforms in the frequency domain
- AWG2021 - Opt. 1R - Rackmount. Floppy moved to front
- AWG2021 - Opt. L0 - English manual
- AWG2021 - Opt. A0 - North America Power
- AWG2021 - Opt. A1 - Universal EURO Power
- AWG2021 - Opt. A2 - United Kingdom Power
- AWG2021 - Opt. A3 - Australia Power
- AWG2021 - Opt. A4 - 240 V, North America Power
- AWG2021 - Opt. A5 - Switzerland Power
- AWG2021 - Opt. C3 - Calibration Service 3 Years
- AWG2021 - Opt. C5 - Calibration Service 5 Years
- AWG2021 - Opt. D1 - Calibration Data Report
- AWG2021 - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- AWG2021 - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- AWG2021 - Opt. R3 - Repair Service 3 Years
- AWG2021 - Opt. R5 - Repair Service 5 Years
| Model | AWG2021 |
|---|

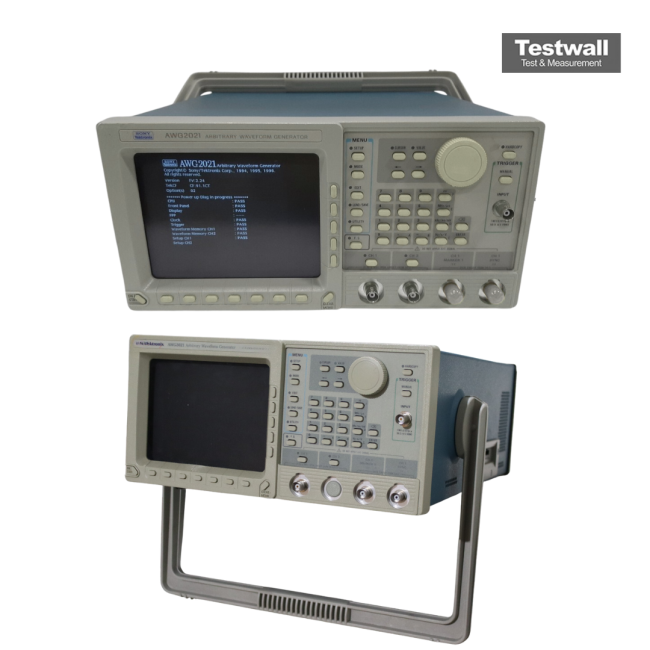

The Tektronix AWG2021 is a high-performance 10 Hz–250 MHz Single Channel Arbitrary Waveform Generator with a fast 250 MS/s sampling rate and a deep 256 k waveform memory. It includes 12-bit vertical resolution and a wide range of programmable features including waveform types such as pulse, sine, square, triangle, and ramp. It supports real-time sequencing, digital data generation, and direct waveform transfers via GPIB and RS232 interfaces.
Its intuitive GUI with 7" CRT display supports waveform editing and “what-if” simulations. Output is a single 5V signal with 1% accuracy, featuring auto, burst, gate, step, and continuous triggering modes.
Testwall can supply the used Tektronix AWG2021, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG2021.
