Tektronix AWG5012B
Arbitrary Waveform Generator
2 analog output channels Number of Channels
Up to 1.2 GS/s Sample Rate
14-bit DAC resolution Vertical Resolution
250 MHz Analog Bandwidth
Up to 32 Msamples per channel (with optional memory upgrade) Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 1.2 GS/s |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 250 MHz |
| Waveform Memory | Up to 32 Msamples per channel (with optional memory upgrade) |
| Marker Outputs | 2 marker outputs per channel (4 total) |
| Output Amplitude | 50 mVp-p to 2 Vp-p into 50 Ω |
| Sequence Length | Up to 32,000 sequence steps |
| Clock Reference | Internal or external 10 MHz reference clock |
| Connectivity & Interface | GPIB, USB, and LAN (LXI Class C compliant) |
| Model | AWG5012B |
|---|

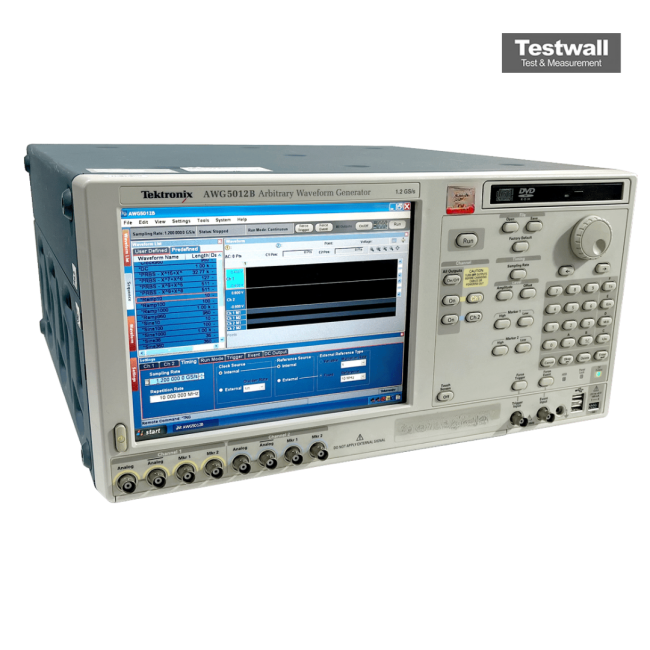

The Tektronix AWG5012B is a dual-channel arbitrary waveform generator offering 1.2 GS/s per channel and up to 32 M points of waveform memory. It improves upon the AWG5012 with enhanced sequencing and triggering, providing high-performance signal simulation capabilities.
With a built-in hard disk and USB export functionality, it's ideal for wideband and multicarrier signal testing applications across advanced communications and radar systems.
Testwall can supply the used Tektronix AWG5012B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5012B.
