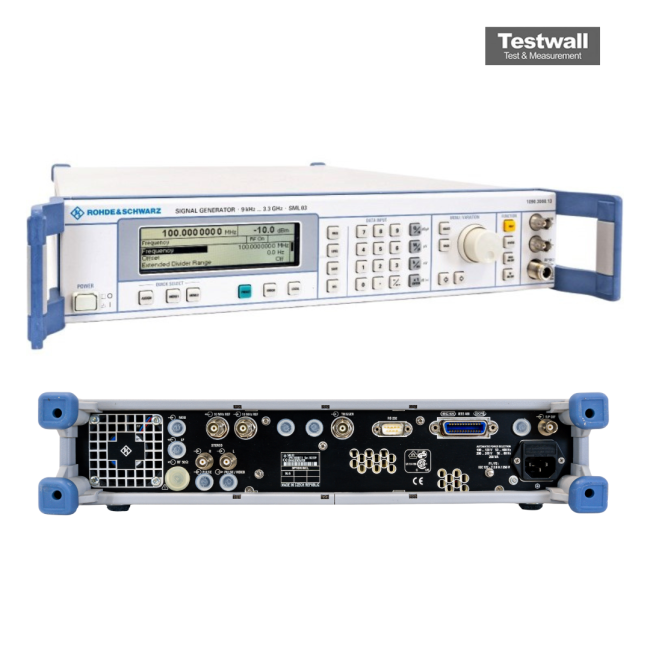

Rohde & Schwarz SML03
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3.3 GHz |
| Frequency Resolution | 0.1 Hz |
| Harmonics | < -30 dBc |
| Switching Speed | < 10 ms |
| Interfaces | GPIB, RS-232 |
| Output Power | -140 to +13 dBm |
| SSB Phase Noise | < -122 dBc/Hz at 1 GHz, 20 kHz offset |
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | < 0.5 dB (to 2 GHz), < 0.9 dB (to 3.3 GHz) |
| Non-Harmonics | < -70 dBc (to 1.1 GHz), < -58 dBc (> 2.2 GHz) |
| Timebase Aging | 10 MHz, < 1 × 10⁻⁶ per year |
Rohde & Schwarz SML03 Options:
- SML03 - SML-B1 - Reference Oscillator OCXO
- SML03 - SML-B3 - Pulse Modulator (with integrated pulse generator)
- SML03 - SML-B5 - Stereo/RDS Coder
- SML03 - SML-B19 - Rear Connectors for AF, RF
The Rohde & Schwarz SML03 Signal Generator covers a wide frequency range from 9 kHz to 3.3 GHz with 0.1 Hz resolution. It features high level accuracy, electronic attenuator for wear-free operation, and multiple modulation capabilities including AM, FM, φM, and pulse. Spectral purity is ensured with excellent SSB phase noise and broadband noise performance.
Ideal for use in development, servicing, and automated production test systems, the SML03 offers seamless level setting without overshoots, simultaneous modulation support, and optional pulse modulator and OCXO for added functionality.
Testwall can supply the used Rohde & Schwarz SML03 Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SML03 Signal Generator.
Options and configurations
- Output Power: -140 to +13 dBm (+23 dBm with Opt. SML-B10)
- Modulation: AM, FM, ΦM, pulse (Opt. SML-B3)
- Timebase Aging: 10 MHz, < 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. SML-B1)
