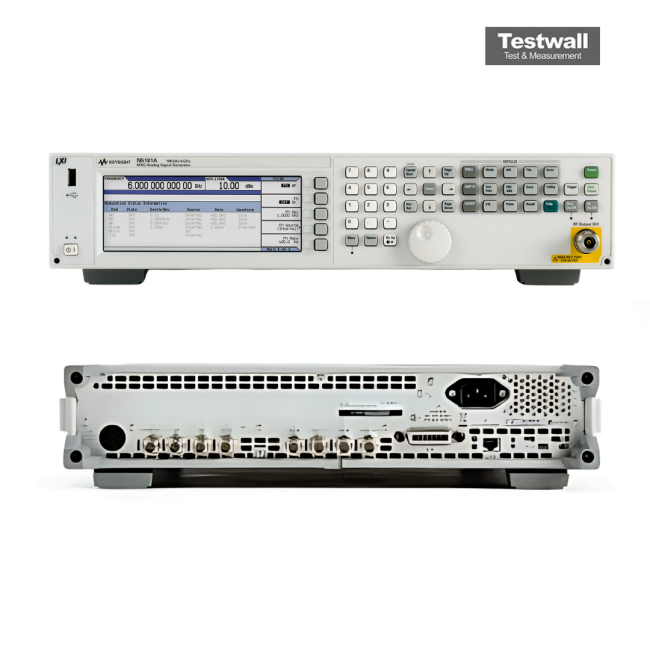

Keysight (Agilent) N5181A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1 GHz |
| Output Power | -127 to +13 dBm to 4.5 GHz, +7 dBm to 6 GHz |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | ≤ -30 dBc to 3 GHz; ≤ -44 dBc at 3 to 6 GHz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | ±1 × 10⁻⁶ per year |
| RF Output Connector | Type-N female |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 103 × 432 mm |
| Weight | 12.5 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5181A-501 | 100 kHz to 1 GHz | Analog signal generator |
| N5181A-503 | 100 kHz to 3 GHz | Analog signal generator |
| N5181A-506 | 100 kHz to 6 GHz | Analog signal generator |
Keysight (Agilent) N5181A-501 MXG RF Options:
- N5181A-501 - 501 - Frequency range from 100 kHz to 1 GHz
- N5181A-501 - UNZ - Fast switching
- N5181A-501 - 1EA - High output power
- N5181A-501 - 1EQ - Low power (< –110 dBm)
- N5181A-501 - UNU - Pulse modulation
- N5181A-501 - UNW - Narrow pulse modulation
- N5181A-501 - UNT - AM, FM, phase modulation
- N5181A-501 - 006 - Instrument security
- N5181A-501 - 1ER - Flexible reference input (1 to 50 MHz)
- N5181A-501 - 1EM - Move RF output to rear panel
- N5181A-501 - UK6 - Commercial calibration certificate with test data
- N5181A-501 - 099 - Expanded license key upgradeability
- N5181A-501 - 1CM - Rackmount kit
- N5181A-501 - 1CN - Front handle kit
- N5181A-501 - 1CP - Rackmount and front handle kit
- N5181A-501 - 1CR - Rack slide kit
- N5181A-501 - AXT - Transit case
- N5181A-501 - 800 - Customer service kit front panel connector configuration
- N5181A-501 - 801 - Customer service kit rear panel connector configuration
The Keysight (Agilent) N5181A-501 MXG RF Analog Signal Generator delivers high reliability and up to +23 dBm output power at 1 GHz, with wide frequency coverage from 100 kHz to 6 GHz. It features a typical phase noise of -121 dBc/Hz and supports AM, FM, ØM, and pulse modulation, ensuring accurate signal generation for various test setups.
With scalable performance and rapid frequency/amplitude switching, it is ideal for LO and clock substitution, CW interferers, and analog communication system testing. Interfaces include LAN, USB, and GPIB.
Testwall can supply the used Keysight (Agilent) N5181A-501 MXG RF, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5181A-501 MXG RF.
Options and configurations
- Frequency Range: 100 kHz to 1 GHz (Opt. 501)
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW)
