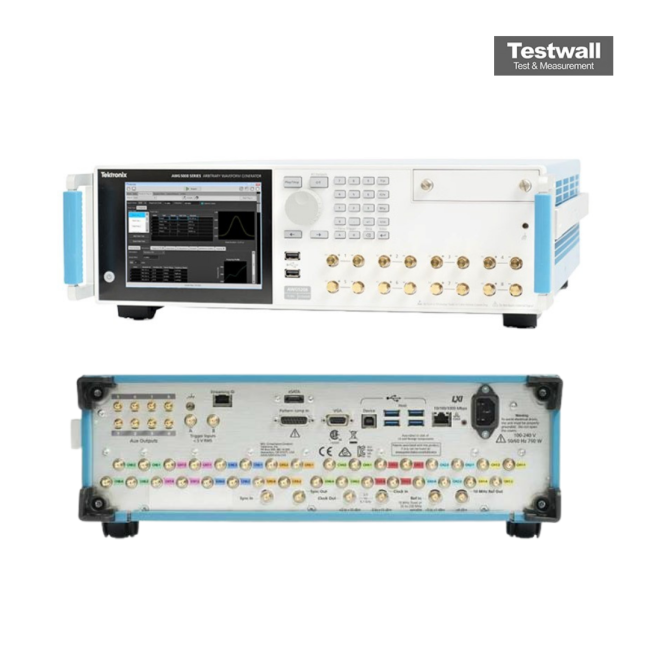

Tektronix AWG5208
Arbitrary Waveform Generator, 4 GHz 8 Ch., up to 10 GS/s
8 analog output channels Number of Channels
Up to 10 GS/s (on 2 channels), up to 5 GS/s (on all 8 channels) Sample Rate
16-bit DAC resolution Vertical Resolution
5 GHz (at 10 GS/s), 2.5 GHz (at 5 GS/s) Analog Bandwidth
Up to 2 Gsamples per channel (with extended memory option) Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 8 analog output channels |
| Sample Rate | Up to 10 GS/s (on 2 channels), up to 5 GS/s (on all 8 channels) |
| Vertical Resolution | 16-bit DAC resolution |
| Analog Bandwidth | 5 GHz (at 10 GS/s), 2.5 GHz (at 5 GS/s) |
| Waveform Memory | Up to 2 Gsamples per channel (with extended memory option) |
| Output Amplitude | 50 mVpp to 1 Vpp into 50 Ω (differential output) |
| Marker Outputs | 2 markers per channel, 16 marker outputs total |
| Sequence Depth | Up to 16,383 sequence steps |
| Clock Reference | Internal or external reference clock (10 MHz to 1 GHz external reference) |
| Connectivity & Interface | 10/100/1000 Ethernet, USB 2.0, Windows-based GUI with RFXpress and ArbExpress software support |
Tektronix AWG5208 Options:
- AWG5208 - AWG5200-825 - 2.5 GS/s
- AWG5208 - AWG5200-850 - 5 GS/s (10 GS/s interpolated)
- AWG5208 - AWG5200-8DC - High Bandwidth Amplified outputs
- AWG5208 - AWG5200-8HV - High Voltage outputs
- AWG5208 - AWG5200-8AC - AC Amplified outputs
- AWG5208 - AWG5200-8DIGUP - Digital up conversion (requires AWG5200-850)
- AWG5208 - AWG5200-SEQ - Sequencing
- AWG5208 - Opt. A0 - North America power plug (115 V, 60 Hz)
- AWG5208 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AWG5208 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AWG5208 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AWG5208 - Opt. A4 - North America power plug (240 V, 50 Hz)
- AWG5208 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AWG5208 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AWG5208 - Opt. A10 - China power plug (50 Hz)
- AWG5208 - Opt. A11 - India power plug (50 Hz)
- AWG5208 - Opt. A12 - Brazil power plug (60 Hz)
- AWG5208 - Opt. A99 - No power cord
- AWG5208 - Opt. L0 - English manual
- AWG5208 - Opt. L5 - Japanese manual
- AWG5208 - Opt. L7 - Simplified Chinese manual
- AWG5208 - Opt. L8 - Traditional Chinese manual
- AWG5208 - Opt. L10 - Russian manual
- AWG5208 - Opt. L99 - No manual
- AWG5208 - Opt. C3 - Calibration Service 3 Years
- AWG5208 - Opt. C5 - Calibration Service 5 Years
- AWG5208 - Opt. CA1 - Single Calibration or Functional Verification
- AWG5208 - Opt. D1 - Calibration Data Report
- AWG5208 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AWG5208 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AWG5208 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- AWG5208 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- AWG5208 - Opt. IF - Upgrade Installation Service
- AWG5208 - Opt. R3 - Repair Service 3 Years (including warranty)
- AWG5208 - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | AWG5208 |
|---|
The Tektronix AWG5208 Arbitrary Waveform Generator features 8 analog channels, 16-bit vertical resolution, and a 10 GS/s max sample rate with interpolation, delivering top-tier signal fidelity and 2 GHz bandwidth.
Ideal for complex RF baseband signal generation, it supports waveform creation via MATLAB, Excel, or its expanding plugin library for experimental and design applications.
Testwall can supply the used Tektronix AWG5208, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5208.
