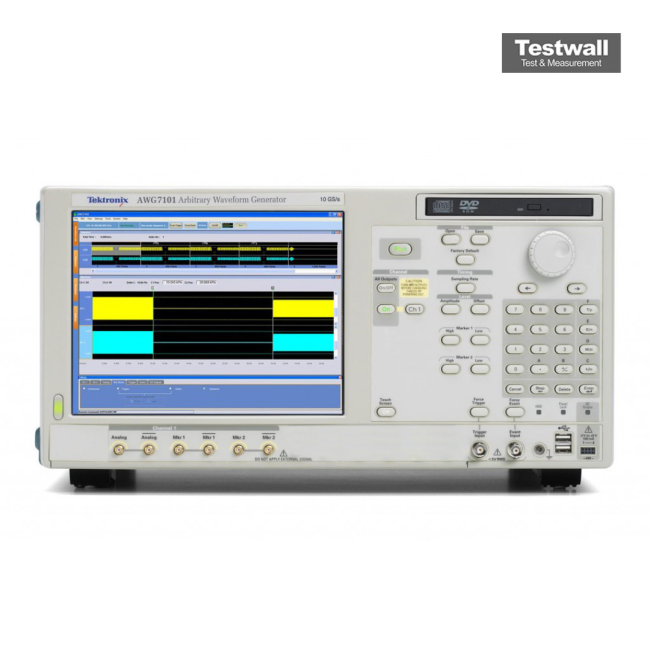

Tektronix AWG7101
Arbitrary Waveform Generator
Up to 10 GS/s Sample Rate
1 channel (expandable to 2 with optional second channel) Analog Output Channels
10-bit DAC resolution Vertical Resolution
Up to 3.5 GHz (with 10 GS/s sample rate) Analog Bandwidth
Up to 32 Megasamples per channel Waveform Memory
| Attribute | Value |
|---|---|
| Sample Rate | Up to 10 GS/s |
| Analog Output Channels | 1 channel (expandable to 2 with optional second channel) |
| Vertical Resolution | 10-bit DAC resolution |
| Analog Bandwidth | Up to 3.5 GHz (with 10 GS/s sample rate) |
| Waveform Memory | Up to 32 Megasamples per channel |
| Amplitude Range | 50 mVpp to 1 Vpp into 50 Ω load |
| Marker Outputs | 2 markers per channel, adjustable levels from -1.0 V to +2.7 V |
| Clock Reference | Internal/External clock reference, 10 MHz reference input/output |
| Operating System | Windows XP Embedded |
| Connectivity | USB, LAN (1000Base-T Ethernet), GPIB (optional) |
| Model | AWG7101 |
|---|
The Tektronix AWG7101 features a 10 GS/s single-channel output, deep waveform memory, 8-bit vertical resolution, and real-time waveform editing, enabling precise simulation of ultra-fast data communications and complex signal scenarios.
Ideal for both digital and RF signal generation, the AWG7101 supports advanced waveform creation with high fidelity for in-depth signal analysis and testing applications.
Testwall can supply the used Tektronix AWG7101, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG7101.
