Tektronix

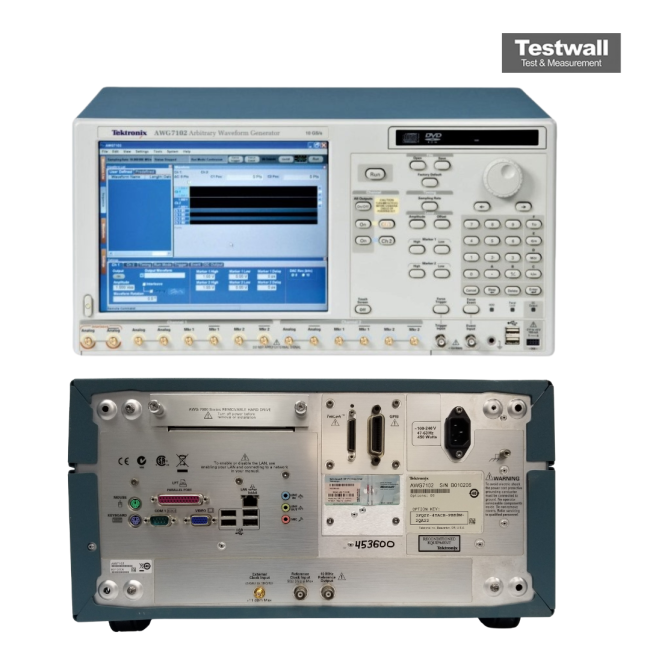

Tektronix AWG7102
Arbitrary Waveform Generator
Up to 10 GS/s Sample Rate
2 Channels Analog Output Channels
8-bit DAC (10-bit with enhanced mode) Vertical Resolution
Up to 4.2 GHz (with 10 GS/s sample rate) Bandwidth
Up to 64 Mega samples per channel Waveform Memory
| Attribute | Value |
|---|---|
| Sample Rate | Up to 10 GS/s |
| Analog Output Channels | 2 Channels |
| Vertical Resolution | 8-bit DAC (10-bit with enhanced mode) |
| Bandwidth | Up to 4.2 GHz (with 10 GS/s sample rate) |
| Waveform Memory | Up to 64 Mega samples per channel |
| Amplitude Range | 50 mVp-p to 1 Vp-p into 50 Ω |
| Marker Outputs | 4 Marker outputs (2 per channel) |
| Clock Reference | Internal and External reference clock support |
| Operating System | Windows XP Professional |
| Connectivity | GPIB, USB, and LAN (LXI Class C compliant) |
| Model | AWG7102 |
|---|
The Tektronix AWG7102 features dual 10 GS/s outputs and 8-bit amplitude resolution, ideal for generating synchronized, high-speed waveforms.
Supports waveform sequencing, software control, and high-speed signal modulation for advanced communications testing.
Testwall can supply the used Tektronix AWG7102, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG7102.
