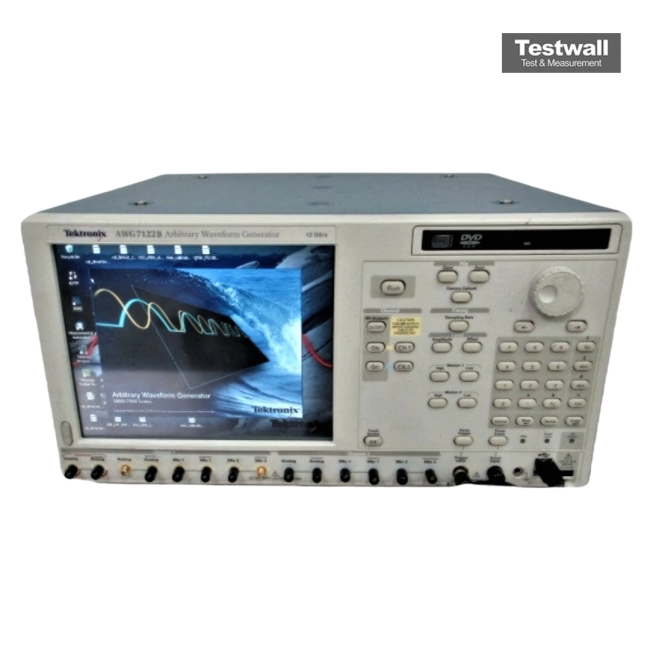

Tektronix AWG7122B
| Attribute | Value |
|---|---|
| Sample Rate | Up to 12 GS/s |
| Analog Bandwidth | 5.8 GHz |
| Vertical Resolution | 10-bit DAC resolution |
| Number of Channels | 2 analog output channels |
| Waveform Memory | Up to 64 MS per channel (expandable to 2 GS with option) |
| Amplitude Range | 50 mVp-p to 1 Vp-p into 50 Ω |
| Clock Reference | Internal and external reference clock support (10 MHz reference) |
| Marker Outputs | 4 marker outputs (2 per channel), 1.2 Vp-p into 50 Ω |
| Operating System | Windows XP Embedded |
| Connectivity | GPIB, USB, and LAN (LXI Class C compliant) |
| Model | AWG7122B |
|---|
The Tektronix AWG7122B is a high-performance arbitrary waveform generator with up to 12 GS/s sample rate and 9.6 GHz effective RF output. It offers 1 or 2 outputs, 10-bit vertical resolution, and ultra-precise jitter control of 20–30 psp-p. Key features include up to 64M point memory, integrated PC, intuitive UI, and advanced waveform sequencing for demanding signal generation.
It supports applications in high-speed serial communications, wideband RF, disk drive testing, and mixed-signal environments. Ideal for signal characterization, glitch simulation, and real-world playback.
Testwall can supply the used Tektronix AWG7122B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG7122B.
