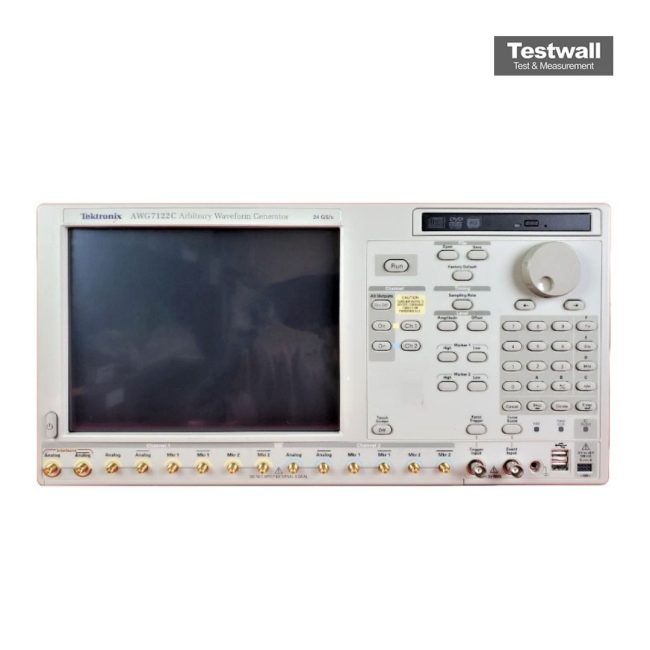

Tektronix AWG7122C 12GS/s 2CH 32M/CH Arbitrary Waveform Generator
12GS/s 2CH 32M/CH Arbitrary Waveform Generator
12 GS/s (single channel), 6 GS/s (dual channel) Sample Rate
2 Number of Channels
32 M samples per channel Waveform Memory
10-bit DAC resolution Vertical Resolution
5.8 GHz (typical) Analog Bandwidth
| Attribute | Value |
|---|---|
| Sample Rate | 12 GS/s (single channel), 6 GS/s (dual channel) |
| Number of Channels | 2 |
| Waveform Memory | 32 M samples per channel |
| Vertical Resolution | 10-bit DAC resolution |
| Analog Bandwidth | 5.8 GHz (typical) |
| Output Amplitude | 500 mVpp to 1 Vpp into 50 Ω |
| Clock Reference | Internal and external reference clock support (10 MHz) |
| Marker Outputs | 2 markers per channel, 1.2 Vpp into 50 Ω |
| Operating System | Windows XP Embedded |
| Connectivity | GPIB, USB, LAN (10/100Base-T Ethernet) |
Tektronix AWG7122C 12GS/s 2CH 32M/CH Arbitrary Waveform Generator Options:
- AWG7122C - Opt. 01 - Waveform record length expansion (from 32M point to 64M point)
- AWG7122C - Opt. 06 - Interleaved output at 24 GS/s (includes Option 02 – High-bandwidth output), alternative for standard output
- AWG7122C - Opt. 08 - Fast sequence switching
- AWG7122C - Opt. 09 - Subsequencing and Dynamic Jump option (subsequencing files created for legacy AWG400, AWG500, AWG600, and AWG700 instrument are compatible with this option)
- AWG7122C - Opt. A0 - North America power plug
- AWG7122C - Opt. A1 - Universal EURO power plug
- AWG7122C - Opt. A2 - United Kingdom power plug
- AWG7122C - Opt. A3 - Australia power plug
- AWG7122C - Opt. A5 - Switzerland power plug
- AWG7122C - Opt. A6 - Japan power plug
- AWG7122C - Opt. A10 - China power plug
- AWG7122C - Opt. A11 - India power plug
- AWG7122C - Opt. A99 - No power cord or AC adapter
- AWG7122C - Opt. L0 - English manual
- AWG7122C - Opt. L5 - Japanese manual
- AWG7122C - Opt. L7 - Simplified Chinese manual
- AWG7122C - Opt. L8 - Traditional Chinese manual
- AWG7122C - Opt. L10 - Russian manual
- AWG7122C - RFX100 - General-purpose IQ, IF, and RF Signal Creation Software Package
- AWG7122C - Opt. UWBCF - RFXpress plug-in for UWB-WiMedia IQ, IF, and RF conformance signal creation (requires RFX100 as prerequisite)
- AWG7122C - Opt. UWBCT - RFXpress plug-in for UWB-WiMedia IQ, IF, and RF custom and conformance signal creation (requires RFX100 as prerequisite and includes Opt. UWBCF)
- AWG7122C - Opt. OFDM - RFXpress plug-in for generic OFDM signal creation (requires RFX100 as prerequisite)
- AWG7122C - Opt. RDR - RFXpress plug-in for radar signal creation (requires RFX100 as prerequisite)
- AWG7122C - Opt. SPARA - S-parameter emulation and DUT characterization (requires RFX100 as prerequisite)
- AWG7122C - SDX100 - Jitter-generation software package (includes USB dongle)
- AWG7122C - Opt. ISI - S-parameter and ISI creation (requires SDX100 as prerequisite)
- AWG7122C - Opt. SSC - Spread Spectrum Clock addition option (requires SDX100 as prerequisite)
- AWG7122C - Opt. CA1 - A single calibration event
- AWG7122C - Opt. C3 - Calibration Service 3 Years
- AWG7122C - Opt. C5 - Calibration Service 5 Years
- AWG7122C - Opt. D1 - Calibration Data Report
- AWG7122C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AWG7122C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AWG7122C - Opt. R3 - Repair Service 3 Years
- AWG7122C - Opt. R5 - Repair Service 5 Years
- AWG7122C - AWG70CUP Opt. M02 - Waveform length expansion 32M point to 64M point
- AWG7122C - AWG70CUP Opt. S02 - Upgrade from Standard to Option 08 (fast sequence switching)
- AWG7122C - AWG70CUP Opt. S49 - Upgrade to add subsequencing and dynamic jump
| Model | AWG7122C |
|---|
The Tektronix AWG7122C Arbitrary Waveform Generator delivers ultra-high performance with 12.0 GS/s (24 GS/s interleaved), 8/10-bit resolution, and 32M point memory across 2 channels. It supports wideband RF/MW signals up to 9.6 GHz and modulation bandwidths up to 5.3 GHz, ideal for complex real-world signal replication. Waveform sequencing, subsequencing, and dynamic jumps enhance its versatility.
Engineers benefit from features like 1 GHz modulation bandwidth, 54 dBc SFDR, waveform vector imports from MATLAB, MathCAD, and Excel, and intuitive GUI for reduced test time.
Testwall can supply the used Tektronix AWG7122C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG7122C.
