Tektronix BSA175C

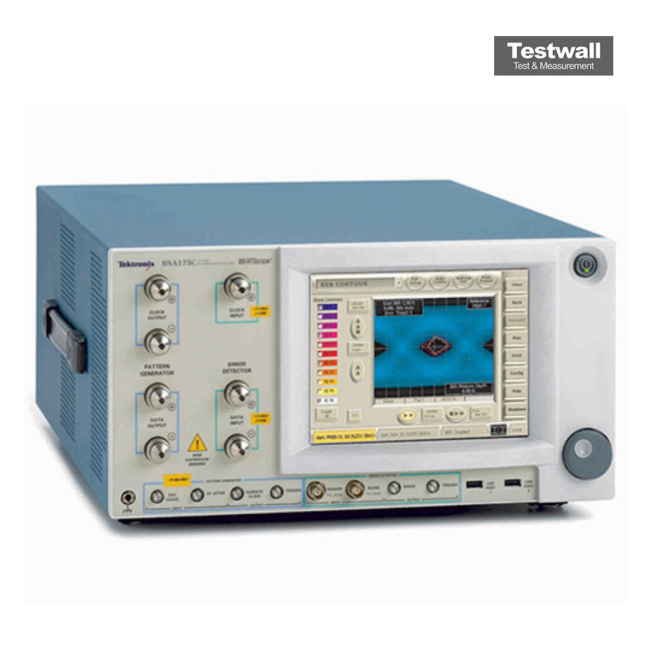

BERTScope 17.5 Gb/s Pattern Generator and Error Analyser
Up to 1.7 Gb/s per channel Data Rate
4 channels Number of Channels
Up to 512 Mb per channel Pattern Memory Depth
DC to 1.7 GHz Frequency Range
-2 V to +4 V (programmable) Output Voltage Range
| Attribute | Value |
|---|---|
| Data Rate | Up to 1.7 Gb/s per channel |
| Number of Channels | 4 channels |
| Pattern Memory Depth | Up to 512 Mb per channel |
| Frequency Range | DC to 1.7 GHz |
| Output Voltage Range | -2 V to +4 V (programmable) |
| Rise/Fall Time | 200 ps typical |
| Timing Resolution | 1 ps |
| Clock Source | Internal or External reference clock |
| Interface | GPIB, USB, LAN (LXI compliant) |
| Operating Temperature | 0°C to 50°C |
Tektronix BSA175C Options:
- BSA175C - Opt. F2 - F/2 Jitter Generation at 8G/10.3125G (requires STR)
- BSA175C - Opt. STR - Stressed Signal Generation (includes option ECC, MAP, PL, XSSC, JTOL)
- BSA175C - Opt. XSSC - Extended Spread Spectrum Clocking (SSC) (included in STR)
- BSA175C - Opt. PCISTR - Add PCIe Gen2 Extended Stress Generation
- BSA175C - Opt. J-MAP - Add Jitter Decomposition SW
- BSA175C - Opt. ECC - Add Error Correction Coding Emulation SW (included in STR)
- BSA175C - Opt. JTOL - Add Jitter Tolerance Templates SW (included in STR)
- BSA175C - Opt. LDA - Add Live Data Analysis SW
- BSA175C - Opt. MAP - Add Error Mapping Analysis SW (included in STR)
- BSA175C - Opt. PL - Add Physical Layer Test Suite SW (included in STR)
- BSA175C - Opt. PVU - Add PatternVu Equalization Processing SW
- BSA175C - Opt. SF - Add Symbol Filtering option SW (used with STR)
- BSA175C - Opt. SLD - Add Stressed Live Data option SW
- BSA175C - Opt. CA1 - Provides a single calibration event or coverage
- BSA175C - Opt. C3 - Calibration Service 3 Years
- BSA175C - Opt. R3 - Repair Service 3 Years (including warranty)
- BSA175C - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of customer instrument purchase
| Model | BSA175C |
|---|
The Tektronix BSA175C BERTScope enables precise bit error rate detection with advanced error location analysis, supporting a data rate of 17.5 Gb/s on a single channel and pulse widths from 128 to 512 clock periods.
Ideal for in-depth jitter and error burst analysis, its high sampling capability provides unmatched insights into pattern-dependent errors and system performance metrics.
Testwall can supply the used Tektronix BSA175C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix BSA175C.
