Tektronix BSX320
| Attribute | Value |
|---|---|
| Number of Channels | 32 |
| Maximum Data Rate | 320 Mb/s per channel |
| Supported Standards | MIPI D-PHY, M-PHY, SPMI, RFFE, I3C, SPI, I2C, UART, CAN, LIN |
| Interface Compatibility | Compatible with Tektronix 4 Series and 6 Series MSO oscilloscopes via FlexChannel inputs |
| Voltage Input Range | -2 V to +7 V |
| Input Impedance | 100 kΩ |
| Threshold Accuracy | ±(3% of threshold setting + 50 mV) |
| Minimum Detectable Pulse Width | 3.125 ns |
| Connector Type | Mictor 38-pin connector |
| Operating Temperature | 0°C to +50°C |
Tektronix BSX320 Options:
- BSX320 - Opt. FEC - Forward error correction emulation
- BSX320 - Opt. UPM - User-defined detector pattern match
- BSX320 - Opt. F2 - F/2 jitter generation
- BSX320 - Opt. J-MAP - Add jitter decomposition software
- BSX320 - Opt. LDA - Add live data analysis software
- BSX320 - Opt. STR - Stressed signal generation
- BSX320 - Opt. SLD - Add stressed live data option software
- BSX320 - Opt. TXEQ - Add 4-tap Tx equalization
- BSX320 - Opt. C3 - Calibration Service 3 Years
- BSX320 - Opt. R3 - Repair Service 3 Years (including warranty)
- BSX320 - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of customer instrument purchase
| Model | BSX320 |
|---|

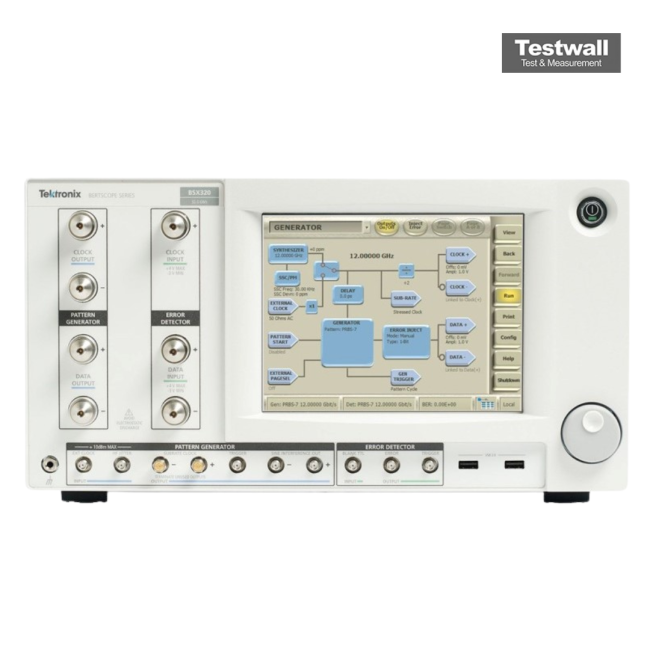

The Tektronix BSX320 from the BERTScope BSX-series delivers receiver test capabilities up to 32 Gb/s with Tx equalization, FEC emulation, and protocol-aware pattern sequencing. Includes Error Location Analysis™, Eye Diagram and Jitter Map tools for advanced Gen4 and high-speed I/O compliance.
Engineered for signal integrity analysis, BER contour testing, and adaptive link training across PCIe, SAS, USB3.1, and custom designs using programmable handshaking and memory-based sequencing.
Testwall can supply the used Tektronix BSX320, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix BSX320.
