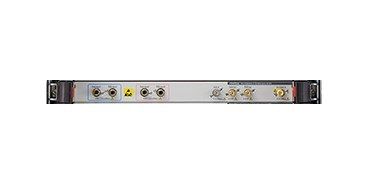

Anritsu MU195040A
21G/32G bit/s SI error detector module, 1 or 2 ch, for MP1900A
2.4 to 21 Gbit/s, or 32.1 Gbit/s Bit Rate (NRZ)
1 or 2 Channels
0.05 to 1.0 Vp-p single-ended; 0.1 to 2.0 Vp-p differential Input Amplitude
15 mV at 28.1 Gbit/s Sensitivity (eye height)
Peak frequency 14, 8 or 4 GHz; gain 0 to -12 dB CTLE
| Attribute | Value |
|---|---|
| Bit Rate (NRZ) | 2.4 to 21 Gbit/s, or 32.1 Gbit/s |
| Channels | 1 or 2 |
| Input Amplitude | 0.05 to 1.0 Vp-p single-ended; 0.1 to 2.0 Vp-p differential |
| Sensitivity (eye height) | 15 mV at 28.1 Gbit/s |
| CTLE | Peak frequency 14, 8 or 4 GHz; gain 0 to -12 dB |
| Clock Recovery | Yes, with SSC support |
| Connector | K (f) |
The MU195040A is a signal-integrity error detector plug-in for the MP1900A, operating from 2.4 to 21 Gbit/s or 32.1 Gbit/s in 1- or 2-channel configurations. It includes CTLE equalisation and clock recovery with SSC support, with 15 mV typical eye-height sensitivity at 28.1 Gbit/s.
Fits the MP1900A and pairs with the MU195020A SI PPG; with MX183000A-PL021/PL022/PL025 it supports PCIe and USB link training. Used for PCIe, USB and high-speed Ethernet receiver and BER testing.
Testwall can supply the used Anritsu MU195040A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MU195040A.
