Tektronix CFG250
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 Hz to 2 MHz |
| Output Waveforms | Sine, Square, Triangle |
| Output Amplitude | 10 mVpp to 10 Vpp (into 50Ω) |
| Output Impedance | 50 Ω |
| Sine Wave Distortion | Less than 1% (from 100 Hz to 100 kHz) |
| Square Wave Rise Time | Less than 100 ns |
| DC Offset Range | ±5 V (into 50Ω) |
| Frequency Accuracy | ±5% of full scale |
| Power Requirements | 90 to 250 VAC, 45 to 440 Hz |
| Operating Temperature | 0°C to 50°C |
| Model | CFG250 |
|---|

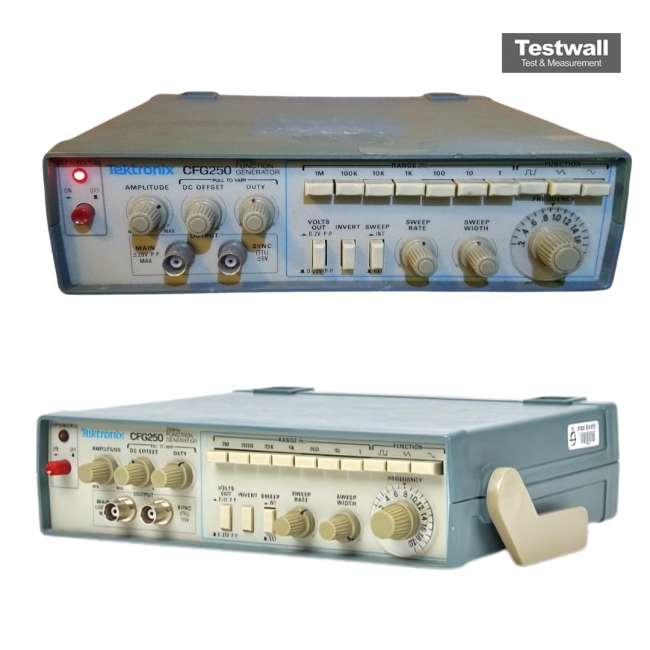

The Tektronix CFG250 is a benchtop function generator operating from 0.2 Hz to 2 MHz with one channel. It supports sine, square, and triangle waveforms, with output voltages from 0 V to 20 V and a 50 Ohm output impedance. Sweep modes include external, internal, and linear, with variable duty cycle and symmetry adjustments.
This unit features a proprietary user interface and universal power input. With its 2 MHz frequency range and 2 kHz triangle waveform capability, it's ideal for versatile waveform generation in electronic testing environments.
Testwall can supply the used Tektronix CFG250, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CFG250.
