Tektronix CR175A
| Attribute | Value |
|---|---|
| Data Rate | 150 Mb/s to 17.5 Gb/s |
| Loop Bandwidth | 100 kHz to 12 MHz, variable (24 MHz with XLBW) |
| Peaking | 0 to 6 dB (500 kHz to 12 MHz loop BW) |
| Input Sensitivity | 100 mV single-ended, 50 mV differential (typical) |
| Max Data Input | -5 V to +5 V |
| Input Equalisation | 0 to 10 dB |
| Recovered Clock Amplitude | 250 mV min; 900 mV max ≤12.5 Gb/s, 700 mV max above |
| SSC Tracking | +500/-5500 ppm, 30-33 kHz triangle modulation |
| Connectors | APC-3.5 Planar Crown (data, clock), SMA (trigger) |
| Dimensions / Weight | 92.25 x 393.7 x 336.5 mm (H x W x D), 9.07 kg |
Tektronix CR175A Options:
- 17GJ - Jitter spectrum analysis
- PCIE - PCIe PLL analysis at 2.5 G and 5 G (requires jitter spectrum option)
- PCIE8G - PCIe PLL analysis at 2.5 G, 5 G and 8 G (requires jitter spectrum option)
- XLBW - Extended loop bandwidth (to 24 MHz)
The CR175A is the 17.5 Gb/s version of the BERTScope clock recovery instrument, covering 150 Mb/s to 17.5 Gb/s. It measures and displays the PLL frequency response and gives full control of loop bandwidth, peaking and roll-off, and can view and measure spread spectrum clocking.
Shares the CR125A feature set, with options for jitter spectrum analysis, PCIe PLL analysis and extended 24 MHz loop bandwidth; used for high-speed I/O design verification and serial standards compliance testing alongside a BERTScope or oscilloscope.

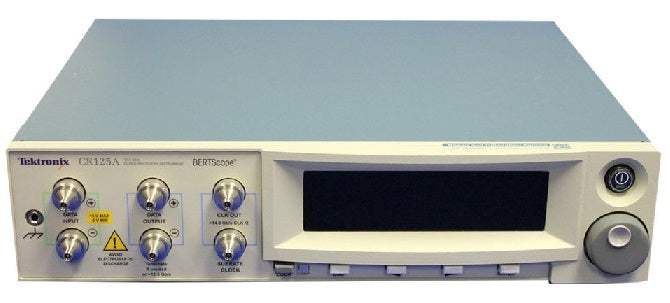

Image shows the Tektronix CR125A, which shares the same form factor.
Testwall can supply the used Tektronix CR175A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix CR175A.
