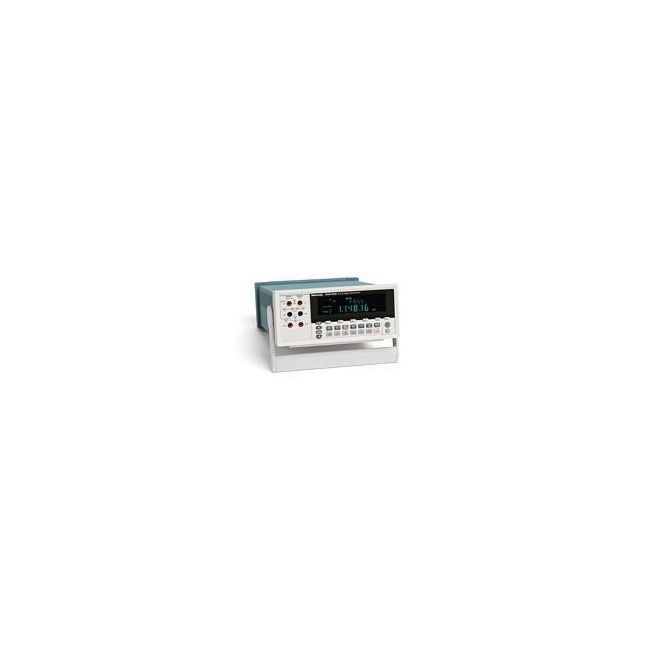

Tektronix DMM4020
| Attribute | Value |
|---|---|
| Number of Digits | 4.5 digits (40,000 counts) |
| DC Voltage Accuracy | 0.05% + 5 counts |
| DC Voltage Range | 400 mV, 4 V, 40 V, 400 V, 1000 V |
| AC Voltage Range | 400 mV, 4 V, 40 V, 400 V, 750 V |
| DC Current Range | 400 µA, 4 mA, 40 mA, 400 mA, 4 A, 10 A |
| Resistance Range | 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ |
| Frequency Range | 5 Hz to 1 MHz |
| Capacitance Range | 4 nF, 40 nF, 400 nF, 4 µF, 40 µF, 400 µF |
| Display Type | Backlit LCD display |
| Power Supply | 9 V battery (6F22) or AC adapter |
Tektronix DMM4020 Options:
- DMM4020 - A0 - North America Power Plug
- DMM4020 - A1 - Universal Euro Power Plug
- DMM4020 - A2 - United Kingdom Power Plug
- DMM4020 - A3 - Australia Power Plug
- DMM4020 - A5 - Switzerland Power Plug
- DMM4020 - A6 - Japan Power Plug
- DMM4020 - A10 - China Power Plug
- DMM4020 - A11 - India Power Plug
- DMM4020 - A12 - Brazil Power Plug
- DMM4020 - E1 - Euro and UK Power Cords
- DMM4020 - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- DMM4020 - D1 - Provides traceable calibration certificate and data report
- DMM4020 - R5 - Repair Service 5 Years (including warranty)
| Model | DMM4020 |
|---|

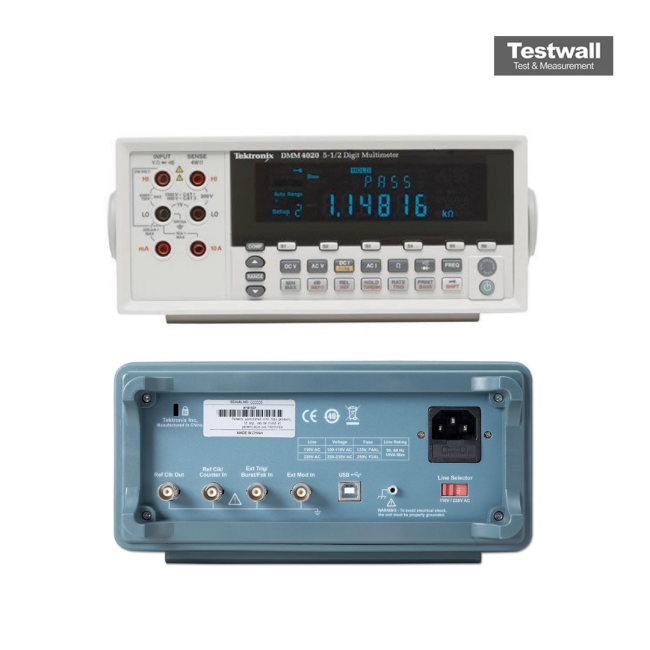

The Tektronix DMM4020 5.5-digit multimeter delivers precise voltage, resistance, and current measurements with 0.015% VDC accuracy. It includes frequency, diode, and continuity testing, plus nanoamp resolution using a current-to-voltage op amp technique. Voltage range spans 200 mV to 1000 V, and current from 200 µA to 10 A, with minimal circuit loading.
Ideal for embedded systems, it integrates multiple instruments into one compact design, offering True RMS, limit compare, and 2×4 Ohm four-wire measurements for enhanced flexibility.
Testwall can supply the used Tektronix DMM4020, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DMM4020.
