Tektronix DPO2CONN
Ethernet Connectivity and Video Output Port
Tektronix DPO2000 and MSO2000 Series Oscilloscopes Compatible Series
Connectivity Module / Application Module Module Type
Yes – enables USB host connectivity for file transfer and peripheral support USB Host Port
Yes – adds IEEE 488.2 GPIB connectivity for instrument control GPIB Interface
Yes – 10/100BASE-T LAN port for network connectivity and remote access Ethernet Port
| Attribute | Value |
|---|---|
| Compatible Series | Tektronix DPO2000 and MSO2000 Series Oscilloscopes |
| Module Type | Connectivity Module / Application Module |
| USB Host Port | Yes – enables USB host connectivity for file transfer and peripheral support |
| GPIB Interface | Yes – adds IEEE 488.2 GPIB connectivity for instrument control |
| Ethernet Port | Yes – 10/100BASE-T LAN port for network connectivity and remote access |
| VGA Output | Yes – allows connection to an external monitor for display mirroring |
| Installation Method | Plug-in module installed directly into the oscilloscope |
| Remote Control Support | Yes – supports remote instrument control via LAN and GPIB interfaces |
| Software Requirement | No additional software required; functionality enabled upon module installation |
| Compliance | Designed to meet CE and other applicable regulatory standards |
Tektronix DPO2CONN Options:
- DPO2CONN - DPO2EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet level information on I2C and SPI buses as well as analytical tools such as bus views, packet decoding, search tools, and packet decode tables with timestamp information
- DPO2CONN - DPO2COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet level information on RS-232/422/485/UART buses as well as analytical tools such as bus views, packet decoding, search tools, and packet decode tables with timestamp information
- DPO2CONN - DPO2AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet level information on CAN and LIN buses as well as analytical tools such as bus views, packet decoding, search tools, and packet decode tables with timestamp information
- DPO2CONN - A0 - North America power
- DPO2CONN - A1 - Universal EURO power
- DPO2CONN - A2 - United Kingdom power
- DPO2CONN - A3 - Australia power
- DPO2CONN - A5 - Switzerland power
- DPO2CONN - A6 - Japan power
- DPO2CONN - A10 - China power
- DPO2CONN - A11 - India power
- DPO2CONN - A99 - No power cord or AC adapter
- DPO2CONN - L0 - English manual
- DPO2CONN - L1 - French manual
- DPO2CONN - L2 - Italian manual
- DPO2CONN - L3 - German manual
- DPO2CONN - L4 - Spanish manual
- DPO2CONN - L5 - Japanese manual
- DPO2CONN - L6 - Portuguese manual
- DPO2CONN - L7 - Simplified Chinese manual
- DPO2CONN - L8 - Standard Chinese manual
- DPO2CONN - L9 - Korean manual
- DPO2CONN - L10 - Russian manual
- DPO2CONN - L99 - No manual
- DPO2CONN - C3 - Calibration Service 3 years
- DPO2CONN - C5 - Calibration Service 5 years
- DPO2CONN - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- DPO2CONN - D1 - Calibration Data Report
- DPO2CONN - D3 - Calibration Data Report 3 years (with Opt. C3)
- DPO2CONN - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DPO2CONN - R5 - Repair Service 5 years (including warranty)
- DPO2CONN - TAP1500 - 1.5 GHz TekVPI single-ended active probe
- DPO2CONN - TDP0500 - 500 MHz TekVPI 42 V differential probe
- DPO2CONN - TCP0030 - 120 MHz TekVPI 30 Ampere AC/DC current probe
- DPO2CONN - TCP0150 - 20 MHz TekVPI 150 Ampere AC/DC current probe
- DPO2CONN - TCPA300/400 - Current measurement system amplifiers
- DPO2CONN - TCP305 - DC to 50 MHz, 50 A current probe for use with TCPA300
- DPO2CONN - TCP404XL - DC to 2 MHz, 500 A current probe for use with TCPA400
- DPO2CONN - P5100 - 2.5 kV, 100X high-voltage passive probe
- DPO2CONN - P5200 - 1.3 kV, 50X/500X, 25 MHz high-voltage active differential probe
- DPO2CONN - P5205 - 1.3 kV, 100 MHz high-voltage differential probe
- DPO2CONN - P5210 - 5.6 kV, 50 MHz high-voltage differential probe
- DPO2CONN - ADA400A - 100x, 10x, 1x, 0.1x high-gain differential amplifier
- DPO2CONN - 071-2331-xx - Service manual (English only)
- DPO2CONN - TPA-BNC - TekVPI to TekProbe BNC Adapter
- DPO2CONN - 119-7465-xx - TekVPI External Power Supply
- DPO2CONN - TEK-USB-488 - GPIB to USB Adapter
- DPO2CONN - 196-3508-xx - Digital Probe Leadset (8 Channels)
- DPO2CONN - TEK-DPG - TekVPI Deskew Pulse Generator Signal Source
- DPO2CONN - 067-1686-xx - Deskew and Calibration Fixture
- DPO2CONN - RMD2000 - Rackmount Kit. Does not include slide-out rails
- DPO2CONN - ACD2000 - Soft Transit Case and Front Protective Cover
- DPO2CONN - 200-5045-xx - Front Protective Cover
- DPO2CONN - HCTEK4321 - Hard Transit Case (Requires ACD2000)
- DPO2CONN - SIGEXPTE - NI LabVIEW SignalExpress Tektronix Edition Software (Full Version)
- DPO2CONN - 119-7083-00 - USB Keyboard
| Model | DPO2CONN |
|---|

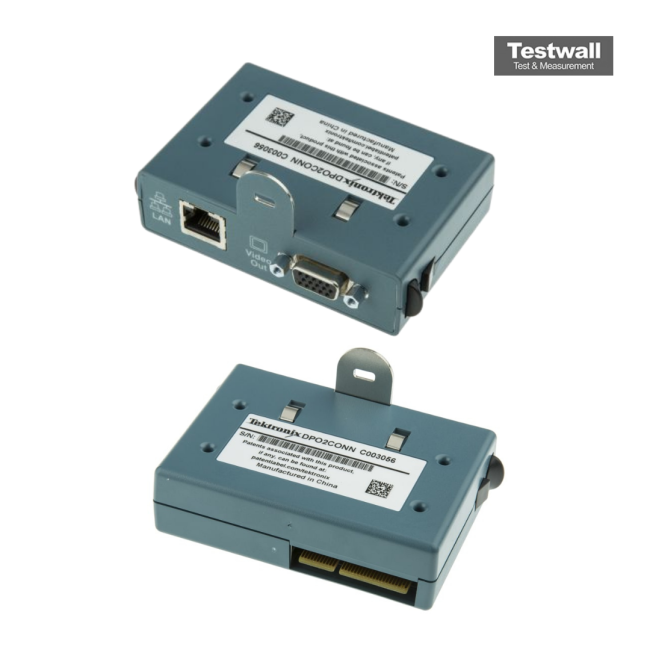

The Tektronix DPO2CONN is a connectivity module designed for MSO/DPO2000 Series oscilloscopes, providing Ethernet (10/100Base-T) and external video output capabilities. This module extends the oscilloscope's interface range, offering reliable network integration and external display support for streamlined workflows.
Ideal for computer and peripheral diagnostics, the DPO2CONN allows seamless communication and visual output expansion in test environments. It is a practical solution for lab and field operations.
Testwall can supply the used Tektronix DPO2CONN, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO2CONN.
