Teladyne LeCroy ZD200
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Probe Type | Active Differential Probe |
| Input Voltage Range | ±15 V (differential) |
| Maximum Common Mode Voltage | ±50 V (DC + Peak AC) |
| Input Impedance | 10 MΩ // 5 pF |
| Attenuation Ratio | 10:1 / 100:1 (selectable) |
| CMRR (Common Mode Rejection Ratio) | >80 dB at 1 MHz |
| Operating Temperature Range | 0°C to +50°C |
| Power Supply | Powered via probe interface or external supply |
| Connector Type | BNC output connector |
Teladyne LeCroy ZD200 Options:
- ZD200 - ZD200 - 200 MHz, 3.5 pF, 1 MΩ Active Differential Probe
- ZD200 - PACC-ZD007 - Replacement Accessory Kit for ZD200
- ZD200 - PACC-ZD008 - Replacement Leadset for ZD200
| Model | ZD200 |
|---|

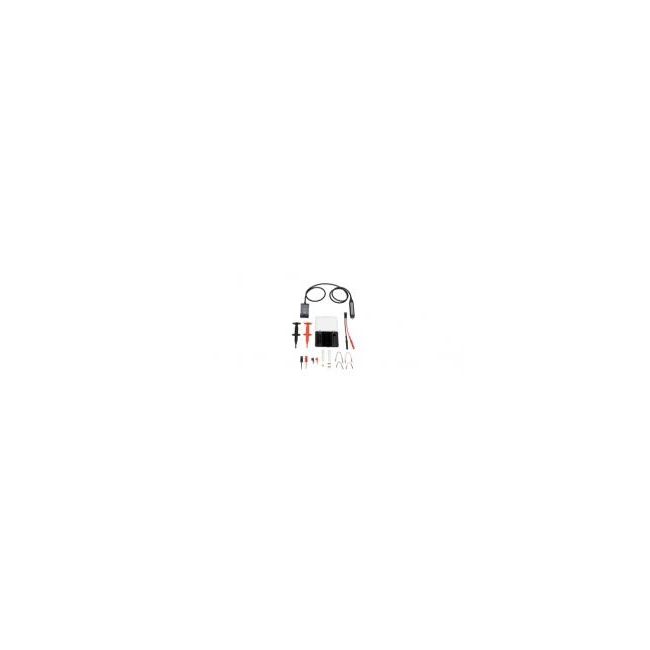

A 200 MHz differential probe designed for broad signal types, featuring high dynamic range and robust loading resistance. 200 MHz bandwidth, ~1.75 ns risetime, ±20 V differential, ±60 V common-mode range, 1 MΩ input resistance, ~3.5 pF capacitance, ProBus integration; no external power needed. Includes grabbers, clips & multiple tip adapters.
Perfect for serial bus diagnostics, automotive signal analysis, and various high-speed differential signal measurements.
Testwall can supply the used Teledyne LeCroy ZD200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy ZD200.
