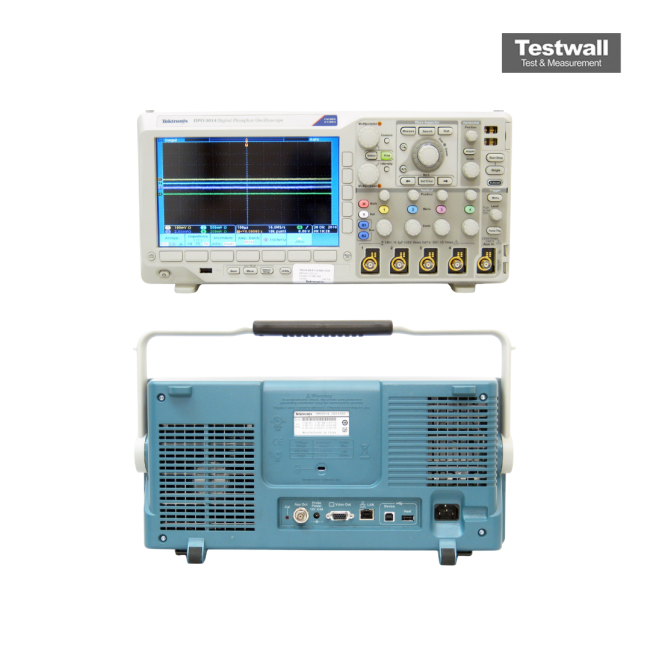

Tektronix DPO3014
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 100 MHz |
| Sample Rate | 2.5 GS/s |
| Record Length | 5,000,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 4 ns/div to 1000 s/div |
| Display | 7-inch WVGA (800 x 480) TFT Color LCD |
| Connectivity | USB Host, USB Device, Ethernet (LAN), CompactFlash |
| Waveform Capture Rate | Up to 50,000 waveforms per second |
Tektronix DPO3014 Options:
Options available for the Tektronix DPO/MSO3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO3014 - DPO3AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- DPO3014 - DPO3AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- DPO3014 - DPO3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DPO3014 - DPO3COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO3014 - DPO3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO3014 - DPO3FLEX - FlexRay serial triggering and analysis
- DPO3014 - DPO3PWR - Power measurement and analysis
- DPO3014 - DPO3VID - Extended video triggering
The Tektronix DPO3014 is a mixed signal oscilloscope with 100 MHz bandwidth, offering four analog channels and 2.5k waveform segments for comprehensive signal diagnostics. It includes advanced FFT and automated measurements, ideal for analyzing analog and digital signals simultaneously. Serial protocol analysis support ensures deep inspection of embedded systems.
This model is well-suited for embedded design, signal verification, and protocol decoding in R&D and education environments.
Testwall can supply the used Tektronix DPO3014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3014
