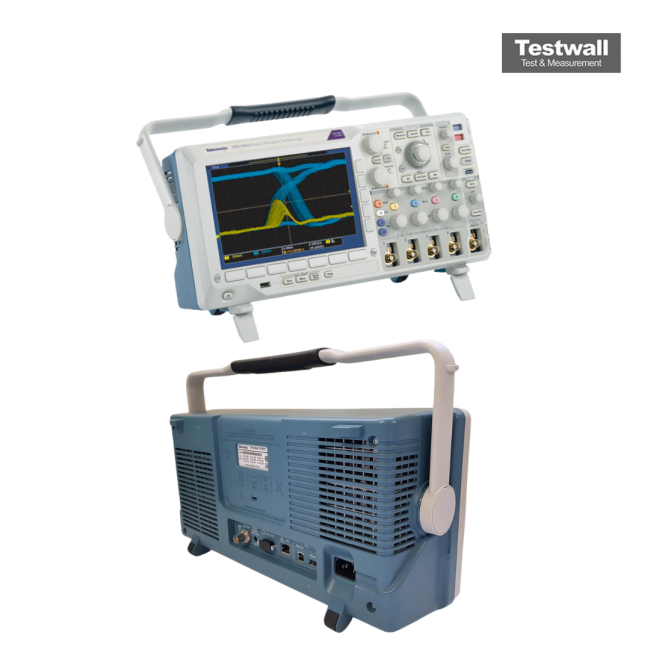

Tektronix DPO3054
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 2.5 GS/s |
| Record Length | 5,000,000 points |
| Vertical Resolution | 8 bits |
| Rise Time | 700 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 7-inch WVGA (800 x 480) TFT color display |
| Connectivity | USB, Ethernet, CompactFlash |
| Waveform Capture Rate | Up to 50,000 waveforms per second |
Tektronix DPO3054 Options:
Options available for the Tektronix DPO/MSO3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO3054 - DPO3AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- DPO3054 - DPO3AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- DPO3054 - DPO3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DPO3054 - DPO3COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO3054 - DPO3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO3054 - DPO3FLEX - FlexRay serial triggering and analysis
- DPO3054 - DPO3PWR - Power measurement and analysis
- DPO3054 - DPO3VID - Extended video triggering
The Tektronix DPO3054 Digital Phosphor Oscilloscope features 500 MHz bandwidth, 4 channels, and a 2.5 GS/s sample rate on all channels. With a 5M record length and >50,000 wfm/s waveform capture rate, it excels in capturing fast transients and rare events. The scope includes advanced triggers, FFT analysis, and a WVGA widescreen display for comprehensive signal analysis.
Ideal for applications in embedded design, transient analysis, power measurements, and video debugging. USB, Ethernet, and video out ports provide excellent connectivity options.
Testwall can supply the used Tektronix DPO3054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3054.
